| Place of Origin: | China |
| Brand Name: | HSTECH |
| Certification: | CE |
| Model Number: | HS-GS9551 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden package |
| Delivery Time: | 7~9 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per month |
| Product Name: | Grounding Screw Locking Machine | Warranty: | 1 Year |
|---|---|---|---|
| Control: | Touch Screen | PLC: | MITSUBISHI |
| Relay Brand: | Schneider | Optoelectronic Switch: | OMRON |
| Material: | Aluminum Alloy | Condition: | New |
| Thickness: | 0.6-4.0mm | Signal: | SMEMA |
| Application: | Electronic Assembly | Color: | Silver |
| Control System: | PLC | OEM/ODM: | Available |
| Power Consumption: | 200W | Power Supply: | AC220V |
| Air Pressure: | 4-6bar | Speed: | 200-300pcs/min |
| Type: | Automatic | Weight: | 220/240KG |

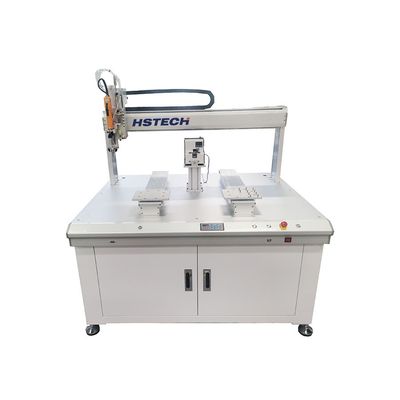

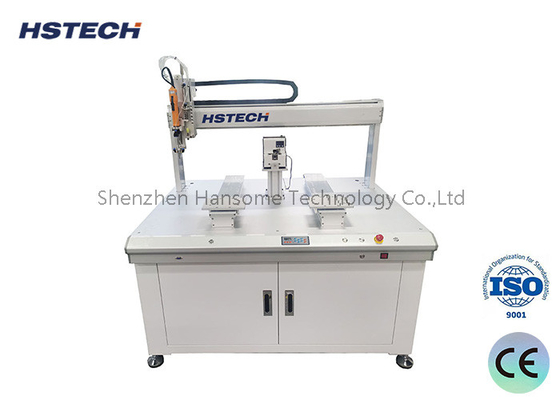

High-Speed 360° Constant Control System Grounding Screw Locking Machine
Machine Introduction
This automatic screw locking(fastening) machine is a 5 axis automatic screw locking machine, with blowing feeding or suction type screw feeder, it use single lock electric batch, with dual platform, operator manual load and unload the product from working station.
| Equipment configuration table | |||
| Config | Qty | Config | Qty |
| XYZ three axes | 1/set | Bar code scanning gun | 1/set |
| CCD | 1/set | IPC+Motion Control Card | 1/set |
| Screwdriver | 1/set | Screw feeder | 1/set |
| Main parts list | |||
| Name | Brand | Remarks | |
| Stepper motor | JMC | Same performance brands can be replaced | |
| Linear slide rail | HIWIN | Same performance brands can be replaced | |
| Motion Control Card | SOLID/Mingseal | Same performance brands can be replaced | |
| Screwdriver | BLADY/SENSEWEE | Same performance brands can be replaced | |
| IPC | Advantech/EVOC | Minimum configuration:i3-8G-1TB | |
| Vision camera | HIKVISION | Same performance brands can be replaced | |
| Bar code scanning gun (fixed) | Honeywell(compatible with 1D and 2D code scanning) | Wired | |
Specification
| Model | HS-GS9551 |
| X/Y1/Y2//Z Working Range | 900*500*500*100mm |
| Screw feeder | Suction feeding,or blowing based on screws |
| X/Y1/Y2 axis moving speed | Closed loop motor :1-800mm/s |
| Z axis moving speed | Closed loop motor: 1-300mm/s |
| X/Y1/Y2 axis max load | Closed loop motor: 5 KG |
| Z axis max load | Closed loop motor: 3 KG |
| Repeat accuracy | ±0.02mm |
| Operation Method | Auto |
| Programming | PC Manual(Teach Pendant) |
| Control | Constant control |
| Weight | 180kg |
| Dimension(L*W*H) | 1300*930*1418mm |
| Power Supply | 220V 50-60Hz 500W |
Features
1.Using more reliable constant control system.
2.Stainless steel structure make sure the machine operation accuracy.
3.Rich motion instructions and auxiliary instruction sets.
4. Strong flexibility and adaptability, different products only need to change the corresponding production procedures, set the number of lock screws, sequence and other parameters, suitable for multiple types of small batch flexible production mode.
5. Flexible screw locking device, can automatically complete the locking action in narrow space
6, Widely use for many different size screws,by adjusting the screw machine supply and screw lock device, you can match the specifications of M1.0-M3.0 screw automatic supply and lock operation.
7.One Z axis, two working platforms, independent work, do not affect with each other, thus reduce screws waiting time, and greatly improve production efficiency.
8.Flood type machine, with wheels, so the machine can be flexibly placed on the production line.
9.Can be customized: equipment strictly according to customer products, screws and production requirements to customize under requirements.
Application
Suitable for mobile phones, hard drives, keyboards, electronic toys, computers, DVD, dots, plastics, electrical appliances, communication equipment, electrical appliances, toys, electronic processing, motors, motors, parts, tablets, notebook computers, digital cameras, remote controls, walkie-talkie, etc.
