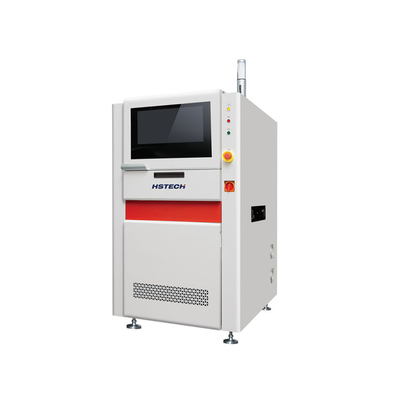

CCD Mark Point Location Barcode Reading Inline CO2 PCB Laser Marking Machine

CCD Mark Point Location Barcode Reading Inline CO2 PCB Laser Marking Machine

  • CCD Mark Point Location Barcode Reading Inline CO2 PCB Laser Marking Machine
  • CCD Mark Point Location Barcode Reading Inline CO2 PCB Laser Marking Machine
CCD Mark Point Location Barcode Reading Inline CO2 PCB Laser Marking Machine
Product Details:
Place of Origin: China
Brand Name: HSTECH
Certification: CE
Model Number: HS-C510F
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden package
Delivery Time: 7~9 work days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100 sets per month
Contact Now
Detailed Product Description
Product Name: Inline CO2 PCB Laser Marking Machine Warranty: 1 Year
Control: Touch Screen PLC: MITSUBISHI
Relay Brand: Schneider Optoelectronic Switch: OMRON
Material: Aluminum Alloy Condition: New
Thickness: 0.3 - 5mm Signal: SMEMA
Application: Electronic Assembly Color: Silver
Control System: PLC OEM/ODM: Available
Total Power: 2600W Power Supply: AC220V
Air Pressure: 4-6bar Mounting Accuracy: ±0.01mm
Type: Automatic Weight: 30KG



CCD Mark Point Location Barcode Reading Inline CO2 PCB Laser Marking Machine



​Specification

Model HS-C510F
Working method Laser head moving
Leaser brand SYNRAD CO2(America brand)
FIducial location CCD+Mark positioning
Inline reading Camera inline reading
PCB thickness 0.5~5.0mm
PCB dimension 50*50~510*460mm
Transpoting height 900±20mm
Transportation direction L-R/R-L
Width adjustment Automatic
XY control system PC+board card+servo motor
XY control accuracy ±0.02mm
Wrong material recognition Nagative board/Reverse/wrong recognition
Bad mark recognition

Auto recognition bad mark,

wont mark bad marks

Anti recode Supported
Control system Win7+self developed system
Power supply Single phase AC 220V 16A 50/60Hz
Air pressure ≥0.5 Mpa
Dimension W1000*L1600*H1700 (mm)
System import SHOP FLOW MES IMS SFIS,etc
Dimension W1000*L1600*H1700 (mm)
Weight 700 KG



Features

1, CCD Mark point location

2, CCD inline barcode reading

3, CCD barcode quality analysis

4, X Y servo driver, accuracy±0.02mm





About Packaging

CCD Mark Point Location Barcode Reading Inline CO2 PCB Laser Marking Machine 0

CCD Mark Point Location Barcode Reading Inline CO2 PCB Laser Marking Machine 1

CCD Mark Point Location Barcode Reading Inline CO2 PCB Laser Marking Machine 2
