| Place of Origin: | China |
| Brand Name: | HSTECH |
| Certification: | CE |
| Model Number: | HS-RM-288 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden package |
| Delivery Time: | 7~9 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per month |
| Product Name: | Offline PCB Router | Warranty: | 1 Year |
|---|---|---|---|
| Control: | Touch Screen | PLC: | MITSUBISHI |
| Relay Brand: | Schneider | Optoelectronic Switch: | OMRON |
| Material: | Aluminum Alloy | Condition: | New |
| Thickness: | 0.6-4.0mm | Signal: | SMEMA |
| Application: | Electronic Assembly | Color: | Silver |
| Control System: | PLC | OEM/ODM: | Available |
| Power Consumption: | 200W | Power Supply: | AC220V |
| Air Pressure: | 4-6bar | Speed: | 200-300pcs/min |
| Type: | Automatic | Weight: | 220/240KG |

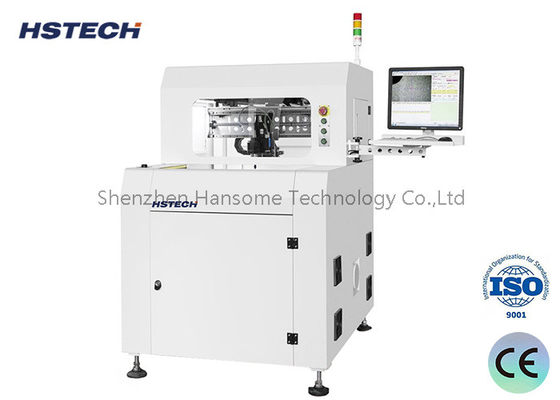

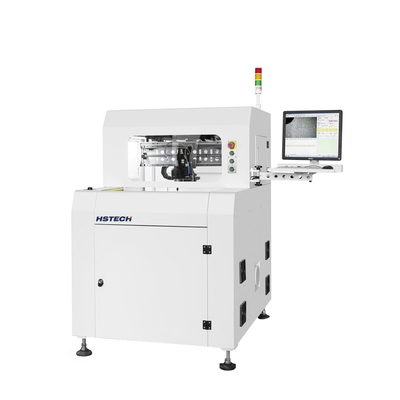

Standard Configuration High Speed Germany Sycotec Spindle Ultra Low Working Noise Offline PCB Router
Technical Details
| Model | RM-288 | RM-388 | ||||||||
| Structure | Single Spindle,dual work platforms | |||||||||
| Machine Size(mm) | 1000*1200*1550 | |||||||||
| Gross Weight | 700kg | |||||||||
| Dust collector size(mm) | 625*600*1600 | |||||||||
| Dust collector power | 3HP/2.2kw | |||||||||
| Dust collector Weight | 130kg | |||||||||
| Dust Collection method | Bottom collection | |||||||||
| Work platform size | 300*400mm | |||||||||
| Platform driving type | Double rotary platform,precision slicer with 3phase motor inverter | |||||||||
| Driving system | X/Y/Z axis driven by servo motor,W axis driven by three phase motor frequency inverter | |||||||||
| Routing Spindle | 5000~50000rpm,auto cooling | 5000~60000rpm,auto cooling | ||||||||
| Cutting speed | 1-100mm/s | |||||||||
| Cutting accuracy | ±0.05mm | |||||||||
| Repeat accuracy | ±0.02mm | |||||||||
| Axis moving speed | 800mm/s | |||||||||
| Z axis moning method | Screw driven,dual guide | |||||||||
| Router kit | milling cutter,φ0.8~φ3.0 left rotation,Shank Tungsten Steel | |||||||||
| Tool life control | Software program control | |||||||||
| Active protective function | safty light curtain | |||||||||
| Security door | Manual door | |||||||||
| Error alaum | Yes | |||||||||
| Program method | Self programing,camera controlled by keyboard and mouser | |||||||||
Product Overview
PCB Router,also called automatic pcb cutting machine, with high speed spindle drying milling kit to cut high density pcba andother material substrate.
Features
Super Vision System
Using high resolution CCD camera allow the user to edit the cutting path easily with it's automatic calibration feature resulting to a very accurate cutting operation.
Movement System
The X,Y and Z axis are made of grinding grade precision ball guide screw and driven by AC servo motor, achieve a good and stable movement performance, with frequency up to 1K Hz high speed response time and self adopting shock reduction filters.
Innovative Hanging Router Kit
The design of the driving shaft located in the center, and slave on both sides, which ensure the stability and accuracy,results to a harmonious structure and compacy size.(50% smaller than industry standard).
Rotary workbench structure
The workbench design is driven by a high pulling torque segmentation(180degree),provides more precision and stability than cylinder driven machines workbenches.This innovative rotary workbench design also allows simultaneous operation of defferent cutting algorithms on both the A and B workbench,thereby reducing changeover idle capacity and maximizing productivity.
Dust collection system
The dust collection system and antistatic blower mantains the system clean during operation,ultra low noise.
Blade management
Allowing the cutting blade setup by stages greatly reduces the cost for consumables.
Cutter System
The milling cutter is driven by a high speed spindle with the advantages of a reduced cutting force, high accuracy,low noise and suitable for all the curve pcbs,like round,straight line,L or U type,squares and arc shapes.
Self recovery diagnostic system
The self diagnostic system allows easy troubleshooting of malfuctions during production and reduces downtime.
Machine drawing
Friendly Operating System
Windows7/10 English version operating system,simple for debugging and operation.
Product Overview
PCB Router,also called automatic pcb cutting machine, with high speed spindle drying milling kit to cut high density pcba andother material substrate.
Advantages
1,Standard configuration high speed Germany Sycotec spindle
2, Ultra low working noise(less than 75dB)
