Equipped With A Automatic Alarm System With FIFO Fuction Automatic Solder Paste Thawing Machine

Equipped With A Automatic Alarm System With FIFO Fuction Automatic Solder Paste Thawing Machine
Equipped With A Automatic Alarm System With FIFO Fuction Automatic Solder Paste Thawing Machine Equipped With A Automatic Alarm System With FIFO Fuction Automatic Solder Paste Thawing Machine Equipped With A Automatic Alarm System With FIFO Fuction Automatic Solder Paste Thawing Machine

Large Image :  Equipped With A Automatic Alarm System With FIFO Fuction Automatic Solder Paste Thawing Machine

Product Details:
Place of Origin: China
Brand Name: HSTECH
Certification: CE
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden package
Delivery Time: 7~9 work days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100 sets per month
Detailed Product Description
Product Name: Automatic Solder Paste Thawing Machine Warranty: 1 Year
Control: Touch Screen Relay Brand: Schneider
Optoelectronic Switch: OMRON Material: Aluminum Alloy
Condition: New Signal: SMEMA
Application: Electronic Assembly Color: Silver
Control System: PLC OEM/ODM: Available
Power Consumption: 200W Type: Automatic



Equipped With A Automatic Alarm System With FIFO Fuction Automatic Solder Paste Thawing Machine





Introduction

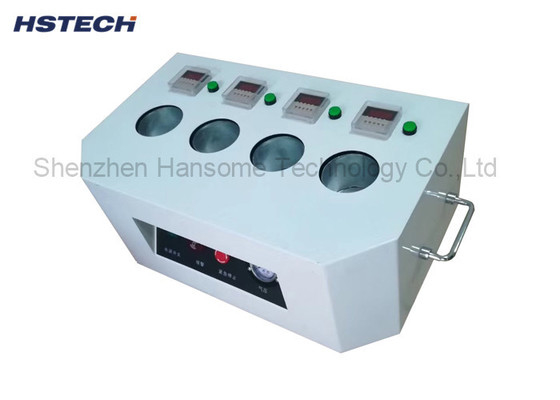

Automatic solder paste thawing machine, also called solder paste aging machine, with the timer, the machine can easily achieve the control of the solder paste temperature warm up time, which can save much time to record the time of solder paste back to the ambient temperature after take out off the refrigerated room. It is a efficiency way to control the temperature of the solder paste, make sure the activity of the solder paste, ensure the printing quality, better to control the production plan, improve production efficiency.



Features

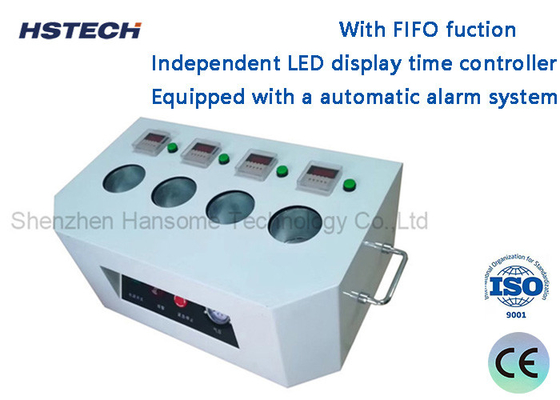

1, Each tank of solder paste placement slot has an independent LED display time controller. After setting the time the solder paste will be fixed in the slot and sink automatically,also it will release automatically when time is over.

2. With FIFO fuction.

3. In the case of out of power accidently,even if not reach setted time, solder paste bottle will automatically pop up.

4. Equipped with a automatic alarm system,when reach the setting time, this machine will automatically alarm. Also there is a emergency stop button for emergency suitation, easy operation and security.

Specification

Model HS-SP-4N
Control system PLC
Assemblying parts Import parts
Power AC220V, 50Hz
Air Pressure 0.4Mpa
Placing tank 4 tanks
Machine Demension 500*300*220mm(W*D*H)
Gross Weight 16KG



AC 220V Solder Paste Aging Machine FIFO Function Standard Size With Automatic Timing 0


About Packaging
Equipped With A Automatic Alarm System With FIFO Fuction Automatic Solder Paste Thawing Machine 1
Equipped With A Automatic Alarm System With FIFO Fuction Automatic Solder Paste Thawing Machine 2
Equipped With A Automatic Alarm System With FIFO Fuction Automatic Solder Paste Thawing Machine 3
