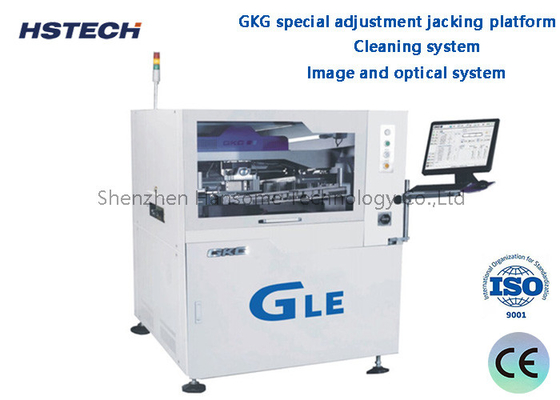

Image And Optical System Cleaning System GKG Special Adjustment Jacking Platform Automatic Solder Paste Printer

Product Details:

Place of Origin:	China
Brand Name:	HSTECH
Certification:	CE
Model Number:	HS-GLE

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Wooden package
Delivery Time:	7~9 work days
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	100 sets per month

Contact Now

Detailed Product Description

Product Name:	Automatic Solder Paste Printer	Warranty:	1 Year
Control:	Touch Screen	Relay Brand:	Schneider
Optoelectronic Switch:	OMRON	Material:	Aluminum Alloy
Condition:	New	Signal:	SMEMA
Application:	Electronic Assembly	Color:	Silver
Control System:	PLC	OEM/ODM:	Available
Power Consumption:	200W	Type:	Automatic

Image And Optical System Cleaning System GKG Special Adjustment Jacking Platform Automatic Solder Paste Printer

Introduction

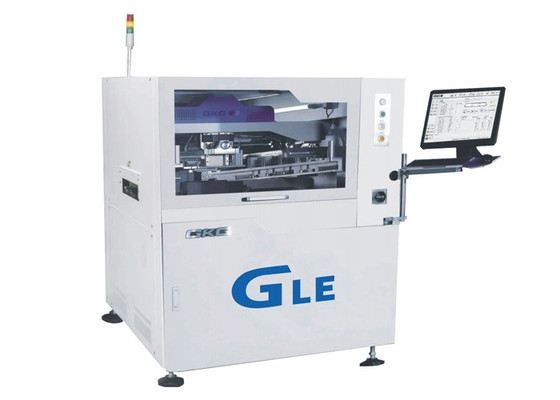

GLE Automatic solder paste printing machine is a high-end machine for SMT large-scale applications. The width of Gt-S is only 2830mm. It can perfectly meet the printing process requirements of 01005,0.3pitch and other fine spacing, it's high precision and high speed.

Features

1, GKG special adjustment jacking platform. Stable and easy to adjust, it can quicklyadjust the pin jacking height of PCB with different thickness.

2, Cleaning system: GKG cleaning system equipped with three cleaning methods: dry cleaning, wet cleaning, vacuum. which can be combined to use. It can also be cleaned by manual if customer do not need to use automatic cleaning to reduce the cleaning time and improve production efficiency. The newly wiping system ensures full contact with the stencil, increased vacuum suction can effectively eliminate the remaining paste in the mesh, which can achieve effective automatic cleaning function.CCD part and c leaning system is separated, when CCD working, CCD part independently move to reduce the servo motor load and improve the machine speed and accuracy.

3, Image and optical system. Using uniform ring light and high brightness coaxial light, with promise brightness adjustment function, then all types of Mark points can be well recognized (Including the rugged mark points), applicable for tin plating, coppering, gold plating,tin spraying, FPC and other types PCB with of different colors. With GKG patent mathematical model,able to ensure high accuracy.

4, High adaptability steel mesh frame clamping system. Able to print all kinds of size screen frames, and quickly change modular

production line.

5, Using Windows XP/win7 operation interface, with good man-machine dialogue function, and easy for operator quickly familiar with the operation especially when doing navigation effect of programming file. easy to switch Chinese/English interface, with operation log, fault record / fault self-diagnosis / fault analysis prompt / light alarm and other functions.

6, New Pattern guide rail ban detachable, programmable flexible side clamp, specific to FPC, PCB warpage, perform a unique clamping plate device. Through software programming can automatically stretch out and draw back unaffected PCB pickness.

Specification

Model	GLE
Max PCB Size	510x510mm
Min PCB size	50x50mm
PCB thickness	0.4-6mm
Max board weight	5kg
Transport height	900±40mm
Board edge gap	2.5mm
Board height	23mm
Transport direction	L-R,R-L
Transport speed	max 1500mm/s, program control
Transport method	One stage
WIdth adjustment	automatic
I/O interface	SMEMA
PCB positioning (support method)	Magnetic pin/support block/up-down table
PCB clamping system	Patented over the top clamping
	Side clamping
	Adsorption function
Print snap-off	0-20mm
Print mode	one/twice
Print Speed	10-200mm/sec
Print Mode	One /Twice
Squeegee Type	Rubber /steel Squeegee Blade(Angle 45°/55°/60°)
Print pressure	0.5-10kg
Template fram size	470370mm~737737mm
Cleaning System	Droops of rain type cleaning system
	Reinforced vacuum absorption
	Dry, wet vacuum three modes
CCD FOV	10x8mm
Fiducial mark types	Standard Fiducial mark shape
	Pad
	Hole
Camera system	Look up/down optics structure
	CCD digital camera
	Geometry pattern match

Machine Performance

Model	GLE
Repeat position accuracy	±12.5um@6,CPK≥2.0
Print accuracy	±20um@6,CPK≥2.0
Print cycle time	＜7.5 sec
Based on the third party test system(CTQ) verify the actual solder paste printing position repeat precision

Whole Machine Specification

Power supply	AC:220±10%,50/60HZ, 3.0KW
Air pressure	4~6 kgf/cm²
Air consumption	around 5L/min
Operating temperature	-20℃~+45℃
Operating humidity	30%~60%
Machine Dimensions(without tower light)	1240(L) x 1410(W) x 1500 (H)mm
Machine Weight	Approx: around 1100Kg
