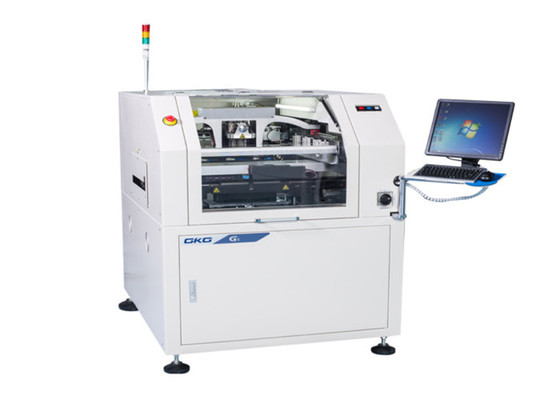

2D Paste Printing Quality Test And Analysis Using Windows XP/Win7 Operation Interface Automatic Stencil Printer

2D Paste Printing Quality Test And Analysis Using Windows XP/Win7 Operation Interface Automatic Stencil Printer

  • 2D Paste Printing Quality Test And Analysis Using Windows XP/Win7 Operation Interface Automatic Stencil Printer
  • 2D Paste Printing Quality Test And Analysis Using Windows XP/Win7 Operation Interface Automatic Stencil Printer
2D Paste Printing Quality Test And Analysis Using Windows XP/Win7 Operation Interface Automatic Stencil Printer
Product Details:
Place of Origin: China
Brand Name: HSTECH
Certification: CE
Model Number: HS-GSE
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden package
Delivery Time: 7~9 work days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100 sets per month
Contact Now
Detailed Product Description
Product Name: Automatic Stencil Printer Warranty: 1 Year
Control: Touch Screen Relay Brand: Schneider
Optoelectronic Switch: OMRON Material: Aluminum Alloy
Condition: New Signal: SMEMA
Application: Electronic Assembly Color: Silver
Control System: PLC OEM/ODM: Available
Power Consumption: 200W Type: Automatic



2D Paste Printing Quality Test And Analysis Using Windows XP/Win7 Operation Interface Automatic Stencil Printer



Features



1, GKG special adjustment jacking platform. Stable and easy to adjust, it can quicklyadjust the pin jacking height of PCB with different thickness.



2, Cleaning system: GKG cleaning system equipped with three cleaning methods: dry cleaning, wet cleaning, vacuum. which can be combined to use. It can also be cleaned by manual if customer do not need to use automatic cleaning to reduce the cleaning time and improve production efficiency. The newly wiping system ensures full contact with the stencil, increased vacuum suction can effectively eliminate the remaining paste in the mesh, which can achieve effective automatic cleaning function.CCD part and c leaning system is separated, when CCD working, CCD part independently move to reduce the servo motor load and improve the machine speed and accuracy.

3, Image and optical system. Using uniform ring light and high brightness coaxial light, with promise brightness adjustment function, then all types of Mark points can be well recognized (Including the rugged mark points), applicable for tin plating, coppering, gold plating,tin spraying, FPC and other types PCB with of different colors. With GKG patent mathematical model,able to ensure high accuracy.

4, High adaptability steel mesh frame clamping system. Able to print all kinds of size screen frames, and quickly change modular production line.

5, Using Windows XP/win7 operation interface, with good man-machine dialogue function, and easy for operator quickly familiar with the operation especially when doing navigation effect of programming file. easy to switch Chinese/English interface, with operation log, fault record / fault self-diagnosis / fault analysis prompt / light alarm and other functions.

6, 2D paste printing quality test and analysis, Able to inspect shift ,insufficient paste, missing and bridge and other defects to ensure the printing quality.

Specification

Model G5
Stencil size 370x370mm(min size)
737x737mm(max size)
20-40mm(thickness)
Max PCB Size 400x340mm
Min PCB size 50x50mm
PCB thickness 0.4-6mm
PCB warpage max 1% PCB diagonal
Transport height 900±40mm
Transport direction L-R,R-L
Transport speed max 1500mm/s, can be adjustment
Transport method One stage
WIdth adjustment automatic
I/O interface SMEMA
PCB positioning (support method) Magnetic pin/support block/up-down table
PCB clamping system
Patented over the top clamping/side clamping
Print head
Two independent motorised printheads
Squeegee Pressure
0.5~10Kg (Program Control)
Print Speed
6-200mm/sec
Print Mode
One /Twice
Squeegee Type
Rubber /steel Squeegee Blade(Angle 45°/55°/60°)
Cleaning System
Ireinforced vacuum absorption ,dry ,wet, vacuum three modes
CCD FOV
8x6mm
Machine adjust range
X: ± 3mm, Y:± 7 mm , θ:± 2°
Vision
Look Up/Down Optics Structure/CCD/Geometry Pattern-match



Whole Machine Specification



Repeat Position Accuracy
±0.01mm
Printing Accuracy
±0.025mm
Cycle Time
<8 Sec
Product Changeover
old:<3 mins,new:<5 mins
Air supply
4~6 kgf/cm
Power supply
AC:220±10%,50/60HZ, 2.5KW
Control method PC
Operation system
Windows XP/Win7
Machine Dimensions
1140(L) x 1364(W) x 1404 (H)mm
Machine Weight
Approx: around 1000Kg



GKG SMT Stencil Printer Machine Windows Operation Tower Light 0.01mm Accuracy 0


About Packaging
2D Paste Printing Quality Test And Analysis Using Windows XP/Win7 Operation Interface Automatic Stencil Printer 1
2D Paste Printing Quality Test And Analysis Using Windows XP/Win7 Operation Interface Automatic Stencil Printer 2
2D Paste Printing Quality Test And Analysis Using Windows XP/Win7 Operation Interface Automatic Stencil Printer 3
