| Place of Origin: | China |
| Brand Name: | HSTECH |
| Certification: | CE |
| Model Number: | HS-RM-F550 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden package |
| Delivery Time: | 7~9 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per month |
| Product Name: | Offline PCBA Router Machine | Warranty: | 1 Year |
|---|---|---|---|
| Control: | Touch Screen | Relay Brand: | Schneider |
| Optoelectronic Switch: | OMRON | Material: | Aluminum Alloy |
| Condition: | New | Signal: | SMEMA |
| Application: | Electronic Assembly | Color: | Silver |
| Control System: | PLC | OEM/ODM: | Available |
| Power Consumption: | 200W | Type: | Automatic |

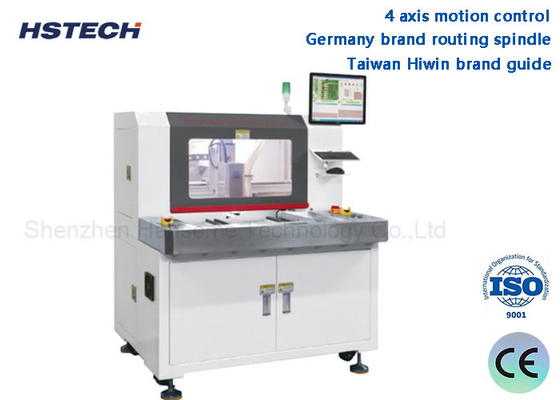

High Performance High Stable Germany Brand Routing Spindle 4 Axis Motion Control Offline PCBA Router Machine
Machine introduction

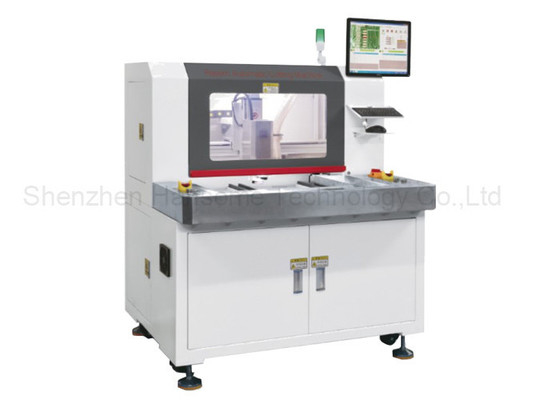

This machine RM-F550 is a new developed Router Machine. It is used to depaneling a whole printed circuit board assemblies (PCBA) into individual PCBa boards. The machine adopt a very stable platform to ensure the working precision, the working platform size is 300*350mm.
It has a larger platform option at 400*600mm.The machine provides user friendly "visual" programming for rapid and accurate online programming,also can detect the depaneling process.
Features
1, Provide customers a high performance,high stable and security industrial equipment, using high precision linear guide, control card, and servo motor.
2, 4 axis motion control basen on the high resolution CCD vicual aligement, use double platform to make the production more efficiency.
3, Germany brand routing spindle, speed at 40000~60000rpm.
4, Taiwan Hiwin brand guide, make sure the moving system precision and smooth.
5, Tool life monitoring. After the cutter cuts a certain distance, it will automatically rise and fall to the position of another uncut blade.
6, Suitable for depaneling straight line, arc, and circular connectted boards.
7, The PCB substrate is placed by two-stage continuous sliding processing to reduce waiting time and increase production.
| Model | RM-F328 | ||
| Structure | Single Spindle,double platform | ||
| Efficienty cutting length | 300*350mm | ||
| Cutting types | Straight line, arc, circular | ||
| Moving speed | X/Y axis 1000mm/s,Z axis 500mm/s | ||
| Dust Collection method | Upper collection | ||
| Spindle | 40000~60000rpm | ||
| Routing Spindle | Max60000rpm | ||
| Cutting speed | 1-100mm/s adjustment | ||
| Cutting accuracy | ±0.03mm | ||
| Repeat accuracy | ±0.01mm | ||
| Programming | colorful CCD | ||
| External connect | USB | ||
| Router kit | milling cutter,φ0.8~φ3.0 left rotation,Shank Tungsten Steel | ||
| Power supply | 380V | ||
| Machine power | 2000W | ||
| Dust collector size | 600*470*730mm | ||
| Dust collector power | 2.2Kw,380V | ||
| Dust collector air pressure | 4-6KG/cm³ | ||
| Security door | Manual door | ||
| Error alarm | Yes | ||
| Program method | Self programing,camera controlled by keyboard and mouser | ||
