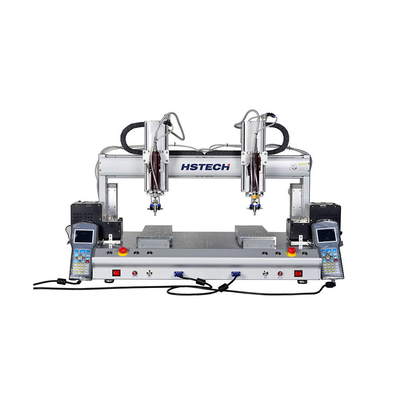

Touch Screen Control Dual Head Suction Screw Feeder Auto Screw Machine

Product Details:

Place of Origin:	China
Brand Name:	HSTECH
Certification:	CE
Model Number:	HS-DH6331

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Wooden package, foam inside
Delivery Time:	7~9 work days
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	100pcs per month

Contact Now

Detailed Product Description

Product Name:	Screw Locking Machine	Feeding:	Suction Feeding
Axis:	6 Axis	Screws Compatible:	M1-M6, Or Customized
Moving Range:	500300300*100mm	Material:	Main Aluminum
Port:	Shenzhen	Oem:	Yes

Touch Screen Control Dual Head Suction Screw Feeder Auto Screw Locking Machine

Introduction

Automatic screw locking machine is mainly composed of screw automatic conveying system, x-y-z movement platform, control system and locking system. The work efficiency is much higher than the traditional manual work, when the screwdriver lifts up after locking a screw, another screw is already air-blown to the driver for locking. Machine can operate continuously, especially for multiple same size items. This series screwdriver machine is suitable for M1-M8 screws, mainly applicable for socket, switch, LED, valve, toy, automobile, household appliances, 3C industry etc.

Specification

Model	HS-DH6331
Production name	Automatic Screw Locking Machine
Moving range(X/Y1/Y2/Z)	600300300100100mm
X/Y1/Y2 axis moving speed	Closed loop motor :1-800mm/s
Z axis moving speed	Closed loop motor: 1-300mm/s
X/Y1/Y2 axis max load	Closed loop motor: 5KG
Z axis max load	Closed loop motor: 3KG
Power supply	AC110V/220V, 50/60Hz
Repeat accuracy	±0.02mm
Document support	CAD CorelDraw
Suitable screws	M1-M6
Machine dimension8	880585800mm
Machine weight	120kg

Main parts brand

1, Motor: Shinano

2, Guide: Hiwin

3, Photoelectric switch: Omron

4, Power supply: Meanwell

Features

1, Suction type feeding, with single screw feeder and single locking head.
2, Desktop and visible operation, can connect the automatic production line.
3, 6 Axis operation, moving range 600*300*300*100*100mm.
4, Support multiple screw bins in suction mode.

5, Double working station, improve the production efficiency and reduce labor cost.
6, Easy adaptability for M1-M6, just by changing screw guider(Customization available).

7, Easy operation, operator can operate several machines at the same time.

8,The machine can store hundreds of processing files, each file can support 1000 screw bits, you can call it out when you use it.

Product details

1.Aluminum:Adopt aviation aluminum,die-cast aluminum structure,beautiful appearance,strong consistency, wearresistance and loss prevention.

2.Precise:Precisely control the amountof glue, the speed of glue,simple operation and convenient use.

3.programmer : Rich and comprehensive programming instructions.

4.Durable:Japanese well-known brandmotor, durable and precise positioning.

Trajectory

Touch Screen Control Dual Head Suction Screw Feeder Auto Screw Machine 0

Application

Suitable for mobile phones, laptops, 3c digital products, automotiveelectronics,electronic components,leds, electrical appliancesProcesses in medical equipment, new energy products, connectors.hardware and otherindustries

Touch Screen Control Dual Head Suction Screw Feeder Auto Screw Machine 1
