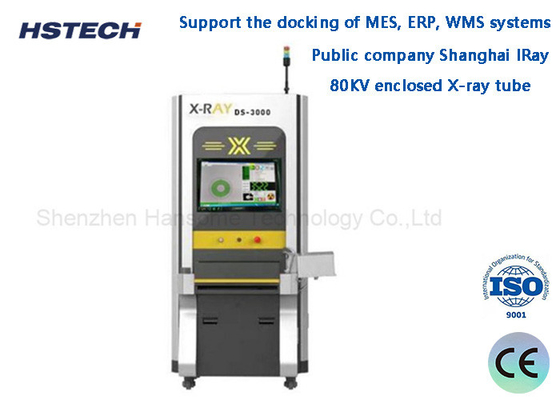

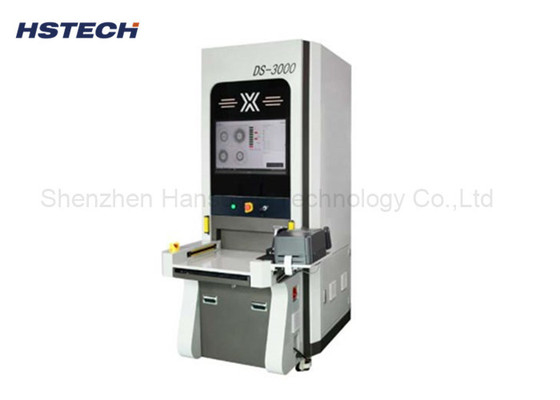

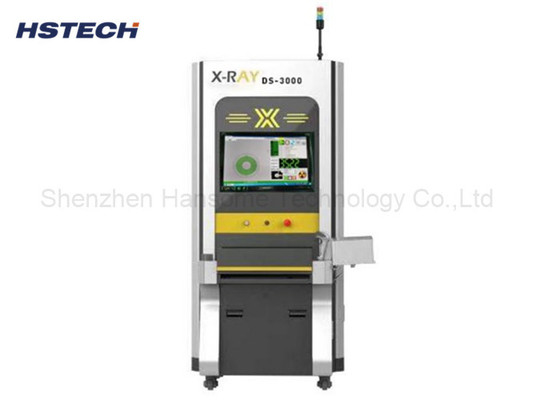

Ultra Fast Counting 80KV Enclosed X-Ray Tube Stable Quality X Ray SMD Chip Counter

Ultra Fast Counting 80KV Enclosed X-Ray Tube Stable Quality X Ray SMD Chip Counter
Ultra Fast Counting 80KV Enclosed X-Ray Tube Stable Quality X Ray SMD Chip Counter Ultra Fast Counting 80KV Enclosed X-Ray Tube Stable Quality X Ray SMD Chip Counter Ultra Fast Counting 80KV Enclosed X-Ray Tube Stable Quality X Ray SMD Chip Counter

Large Image :  Ultra Fast Counting 80KV Enclosed X-Ray Tube Stable Quality X Ray SMD Chip Counter

Product Details:
Place of Origin: China
Brand Name: HSTECH
Certification: CE
Model Number: DS-3000
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden package
Delivery Time: 7~9 work days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100 sets per month
Detailed Product Description
Product Name: X Ray SMD Chip Counter Warranty: 1 Year
Control: Touch Screen PLC: MITSUBISHI
Relay Brand: Schneider Optoelectronic Switch: OMRON
Motor: Panasonic Condition: New
Signal: SMEMA Application: Electronic Assembly
Control System: PLC OEM/ODM: Available
Type: Automatic



Ultra Fast Counting 80KV Enclosed X-Ray Tube Stable Quality X Ray SMD Chip Counter



Technical Details

Product name Offline X-Ray SMD Counter
Model DS-3000
X Ray Tube Type Enclose type, micro focal spot
Tube voltage 80kV
Tube current 700μA
Focal spot size 30μm
Flat-table testing probe Type HD digital table
Effective area 430*430mm
Pixel size 140μm
Resolution 3072*3072
Tape reel Max size 17 inch(approx 430mm)
Max height 85mm
Min components 01005
Counting speed 10 seconds each time
Counting accuracy >99.95%
Functions Bar-code auto scanning Support QR code,bar-code
Label printer Print corresponding label
Management system MES,ERP,WMS
Machine basic information Size 1067*1335*1968mm
Weight 950KG
Power supply AC110V/220V,50/60Hz
Max power 800W
Industrial PC I7-6700 CPU, 8G RAM, 240GB SSD
Monitor 24inch HDMI display
Security Radiation None,standard <1uSv/hr
Rear side door lock Once open the door, the X ray tube power off immediately
Table anti-collision protection When the table extended, there is a steel plate around it to prevent deformation by impact
Safety grating Equipped
Emergency button Equipped



Features



1. The X-ray source adopts 80KV enclosed X-ray tube, stable quality, don’t need maintenance.



2. Use public company Shanghai IRay,17-inch ultra-clear digital flat-panel X ray detecting probe, eliminates the traditional scanning detectors.



3. Ultra fast counting, scan 4 pcs 7 inch reel or 1 pc 15 inch reel only need 10 seconds.



4. Max can count 17inch (430mm)tape reel, including the a moisture-proof bag or Jedec packed tape reels.



5. The patent deep learning algorithm with independent property rights, accumulate data to the cloud database and share it with all machines.



6. The machine will scan the bar-code and counting the reels at the same time, don’t need manual scan the bar-code, and the corresponding label will be printed immediately when any reel is taken out, without mistakes.





7. Support the docking of MES, ERP, WMS and other systems, and digitally manage the material warehouse. Software algorithm is permanently updated.



8. Compared with traditional counting machine, it greatly improves the efficiency and accuracy, saves manpower, and greatly shortens the time of material in and out of the warehouse.





Offline Tape Reels 80kV SMD Component Counter X Ray Tube 0

Offline Tape Reels 80kV SMD Component Counter X Ray Tube 1

Offline Tape Reels 80kV SMD Component Counter X Ray Tube 2







About Packaging

Ultra Fast Counting 80KV Enclosed X-Ray Tube Stable Quality X Ray SMD Chip Counter 3

Ultra Fast Counting 80KV Enclosed X-Ray Tube Stable Quality X Ray SMD Chip Counter 4

Ultra Fast Counting 80KV Enclosed X-Ray Tube Stable Quality X Ray SMD Chip Counter 5
