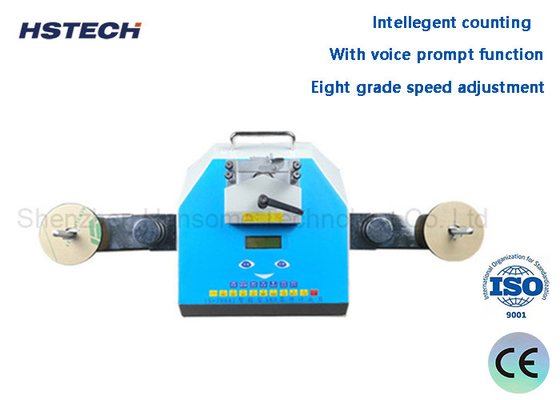

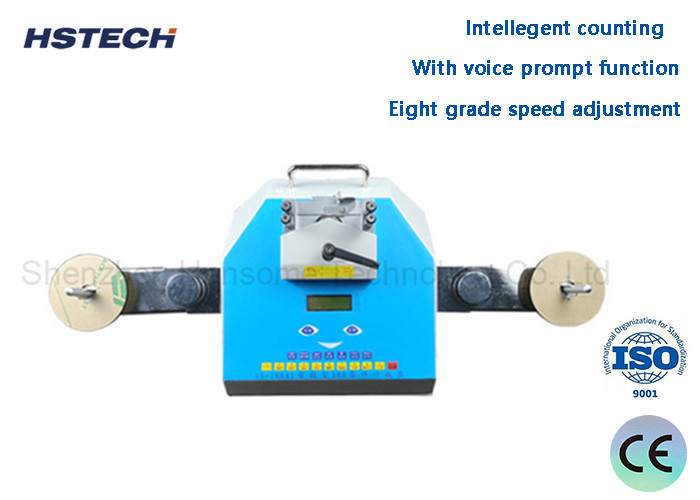

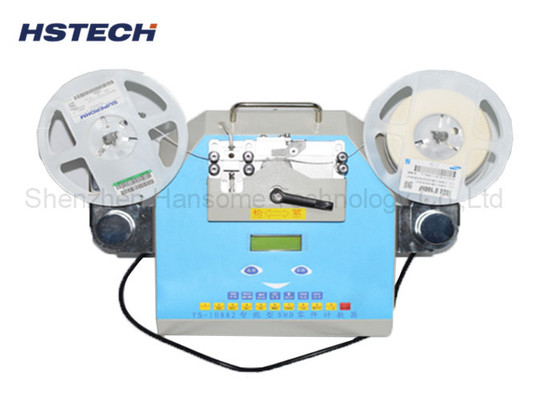

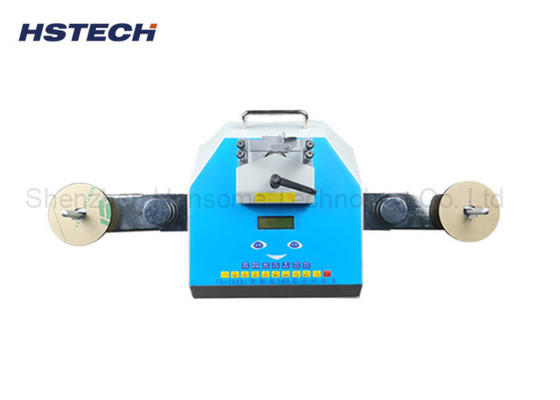

Eight Grade Speed Adjustment Intellegent Counting SMD Components Counter

Eight Grade Speed Adjustment Intellegent Counting SMD Components Counter
Eight Grade Speed Adjustment Intellegent Counting SMD Components Counter Eight Grade Speed Adjustment Intellegent Counting SMD Components Counter Eight Grade Speed Adjustment Intellegent Counting SMD Components Counter

Large Image :  Eight Grade Speed Adjustment Intellegent Counting SMD Components Counter

Product Details:
Place of Origin: China
Brand Name: HSTECH
Certification: CE
Model Number: HS-881
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden package
Delivery Time: 7~9 work days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100 sets per month
Detailed Product Description
Product Name: SMD Components Counter Warranty: 1 Year
Control: Touch Screen PLC: MITSUBISHI
Relay Brand: Schneider Optoelectronic Switch: OMRON
Motor: Panasonic Condition: New
Signal: SMEMA Application: Electronic Assembly
Control System: PLC OEM/ODM: Available
Type: Automatic



Eight Grade Speed Adjustment Intellegent Counting SMD Components Counter



Technical Details

Model HS-881
Power supply AC110V,AC220V, 50/60Hz
Wattage 80W
Counting time 19 seconds to 2 min
Counting range -16777216~16777216 pcs
Pitch size 2,4,8,9,10,12,16,24,32mm
Tape width 8,12,16,24,32,44,56,72,88 m
Plastic reel size 7-13 inch
Application Suitable for all components
Product size 730*230*270mm
Gross weight 11kg





Features

1. Intellegent counting, with pocket check function.



2. Eight grade speed adjustment, improve the efficiency,meet the different size tape.


3. Optional label printer and barcode scanner.


4. With voice prompt function.



5, With the end comopnents automatic stop counting function.


6. 57 stepper motor.



7, The wohle machine body stainless steel, durable design.



8, High resolution LED display, better to observe the counting process.


9, Fully control the components in the factory, avoid mistakes.





Comparison with traditional counter



Comparison point Traditional counter Intelligent counter-HS-881
Automatic stop after work No, need to push stop manually yes
Buffer stop No Yes,would slow down when is finishing
Voice instruction and number off  No Yes, finish alert
Error No. No.
Power 30W 80W
Speed

For 5000pcs small elements

30 seconds per plate

For 5000pcs small elements

15 seconds per plate

Speed Adjustment 3 levels 8 levels
Noise Low low
Counting scope -99999 to 99999 -16 777 216 to 16 777 216
Printer port yes yes
Scanner port yes yes
Omission detection, optional yes yes
Clock, optional yes yes









SMT Production Line SMD Component Chip Counter Machine Speed Adjustment 80W 0Eight Grade Speed Adjustment Intellegent Counting SMD Components Counter 1Eight Grade Speed Adjustment Intellegent Counting SMD Components Counter 2

About Packaging

Eight Grade Speed Adjustment Intellegent Counting SMD Components Counter 3

Eight Grade Speed Adjustment Intellegent Counting SMD Components Counter 4

Eight Grade Speed Adjustment Intellegent Counting SMD Components Counter 5
