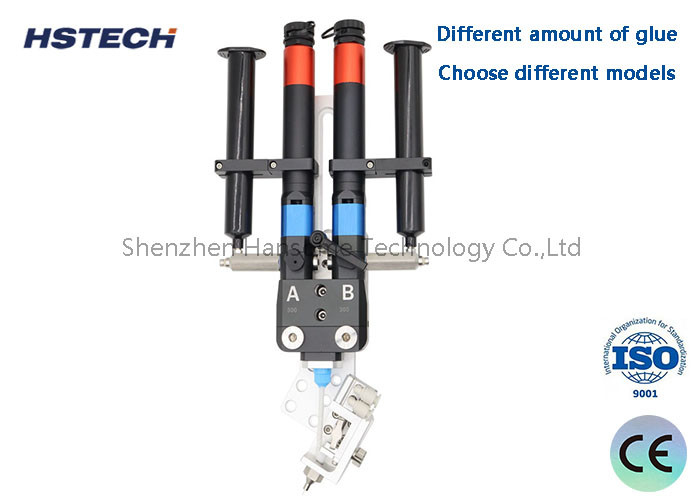

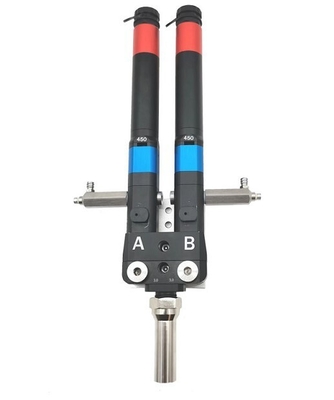

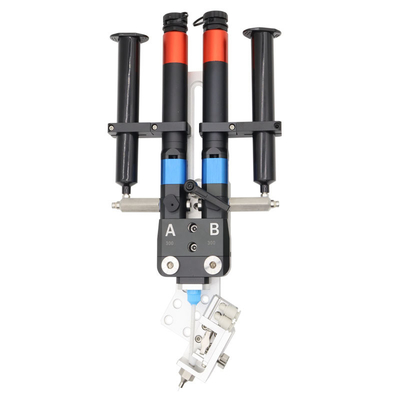

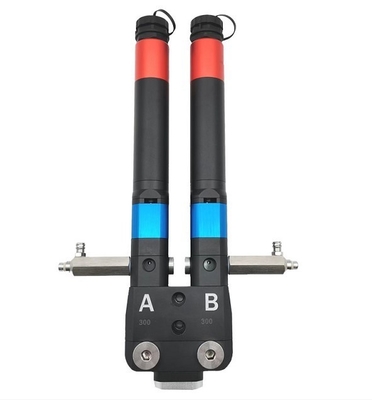

0.24ML/min~2.96ML/min Dual Tube Screw Valve with Alarm Function

0.24ML/min~2.96ML/min Dual Tube Screw Valve with Alarm Function
0.24ML/min~2.96ML/min Dual Tube Screw Valve with Alarm Function 0.24ML/min~2.96ML/min Dual Tube Screw Valve with Alarm Function 0.24ML/min~2.96ML/min Dual Tube Screw Valve with Alarm Function 0.24ML/min~2.96ML/min Dual Tube Screw Valve with Alarm Function

Large Image :  0.24ML/min~2.96ML/min Dual Tube Screw Valve with Alarm Function

Product Details:
Place of Origin: China
Brand Name: HSTECH
Certification: CE
Model Number: HS300-300
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Carton package
Delivery Time: 3-5 work days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100 sets per week
Detailed Product Description
Product Name: Dual Tube Screw Valve Throughput Per Revolution: 0.02ML
Gluing Speed: 0.24ML/min~2.96ML/min Recommended Mixing Ratio: 3:1~1:1
Net Weight Of Valve: 1.35kg

0.24ML/min~2.96ML/min Dual Tube Screw Valve with Alarm Function



Working Principle:

Dual Tube screw valve principle: two different kinds of glue, through the A,B two single tube screw valve in accordance with the proportion of precise glue extrusion to the mixing tube, and then through the mixing tube to the two kinds of glue mixed together, and then flow to the product for glue dispensing.



Specification:

Model Throughput per revolution Gluing speed Recommended mixing ratio Net weight of valve
HS300-300 0.02ML 0.24ML/min~2.96ML/min 3:1~1:1 about 1.35kg
HS600-300 0.21ML 1.52ML/min~17.48ML/min 10:1 about 1.55kg
HS450-450 0.1ML 1.0ML/min~12ML/min 3:1~1:1 about 1.4kg
HS600-450 0.25ML 1.9ML/min~22ML/min 5:1~10:1 about 1.575kg
HS700-450 0.65ML 5.8ML/min~66ML/min 5:1~10:1 about 1.575kg
HS600-600 0.4ML 2.8ML/min~32ML/min 3:1~1:1 about 1.62kg
HS700-600 0.8ML 6.7ML/min~76ML/min 5:1~10:1 about 1.62kg
HS700-700 1.2ML 10.6ML/min~120ML/min 3:1~1:1 about 1.62kg



Selection conditions:

1. There are particles of glue need to choose ceramic screws.

2. Different amount of glue, choose different models.

3. Dual Tube screw valve can choose the lack of glue alarm function.

4. Screw does not need to screw rotor and stator cleaning, you can directly remove the mixing tube.



0.02ML Throughput Per Revolution Two Different Kinds Of Glue Dual Tube Screw Valve 00.02ML Throughput Per Revolution Two Different Kinds Of Glue Dual Tube Screw Valve 10.02ML Throughput Per Revolution Two Different Kinds Of Glue Dual Tube Screw Valve 2
