Place of Origin: | China |
Brand Name: | HSTECH |
Certification: | CE,RoHS |
Model Number: | GD-01 |
Minimum Order Quantity: | 200 meters |
---|---|
Price: | Negotiable |
Packaging Details: | Carton package |
Delivery Time: | 3 days |
Payment Terms: | T/T, Western Union, MoneyGram |
Supply Ability: | 100000000 Meters per month |
Product Name: | Hot Sealing Cover Tape | Material: | Composite Material |
---|---|---|---|
Color: | Transparent | Type: | Hot Sealing Tape |
Condition: | New | Application: | Carrier Tape To Hold Components |
Length: | According To Customers' Sizes | Warranty: | 1 Year |

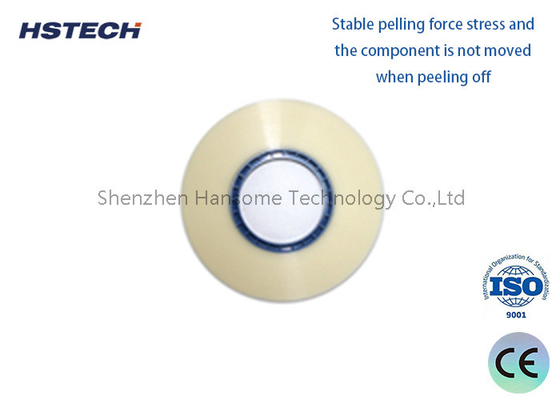

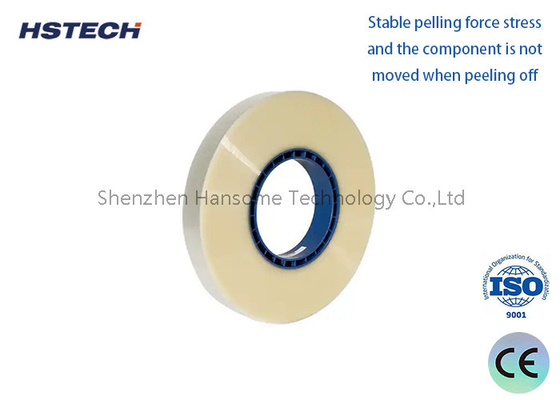

SMD Component Counter 9.3mm PET Cover Tape with Tensile Strength 20-110GF for IC/Capacitors/Transistors
Introduction
The cover tape is sealed to the carrier tape to hold the devices in the pockets. We offers a full range of cover tapes to meet various requirements.
Cover tape specification
Name | Cover tape |
Material | Composite material |
Calculation unit | Meter |
Tape width | 9.3mm |
Tape specs | 300M per reel |
Color | Transparent |
Sealing pressure | 0.2Mpa |
MOQ | 200meters |
Cover tape | hot sealing |
Reels | Available |
Carrier tape size and matched cover tape
Carrier Tape(mm) | 8 | 12 | 16 | 24 | 32 | 44 | 56 | 72 | 88 | 104 |
Cover Tape(mm) | 5.4 | 9.3 | 13.3 | 21.3 | 25.5 | 37.5 | 49.5 | 65.5 | 81.5 | 97.5 |
Carrier tapes
Carrier tape has pockets that are shaped to match the contours of the component to be carried. Under EIA standards, carrier tape width is between 8 and 104 mm. There are sprocket holes down both sides of the tape; round with a radius of approximately 1.5 mm on one side and oval with a "radius" of 0.75 mm on the other. These holes enable precise presentation of the pocket to the pick and place unit.
Reels
We manufacture reels by injection moulding. They are made of polystyrene in different sizes and designs. By request we can also produce them in anti-static or conductive versions.
With tape and reel, it is robot speed that determines the rate of production. With today’s generation of picking and placing robots, we at HERO-PAK will view completely new possibilities for increasing production efficiency.
