SMD Component Counter: Cold Sealing Cover Tape for LED Packing

SMD Component Counter: Cold Sealing Cover Tape for LED Packing

  • SMD Component Counter: Cold Sealing Cover Tape for LED Packing
  • SMD Component Counter: Cold Sealing Cover Tape for LED Packing
SMD Component Counter: Cold Sealing Cover Tape for LED Packing
Product Details:
Place of Origin: China
Brand Name: HSTECH
Certification: EIA
Model Number: CT-02
Payment & Shipping Terms:
Minimum Order Quantity: 200 meters
Price: Negotiable
Packaging Details: Carton package
Delivery Time: 3 days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 10000 reels per month
Contact Now
Detailed Product Description
Product Name: Embossed Carrier Tape Material: PC/PS/ABS
Width: 8mm/12mm/16mm/44mm,etc Thickness: 0.14`2mm
Color: Black,white If ESD: Yes
Cover Tape: Included If Customer Request Reel: Plastic

SMD Component Counter: Cold Sealing Cover Tape for LED Packing



Introduction

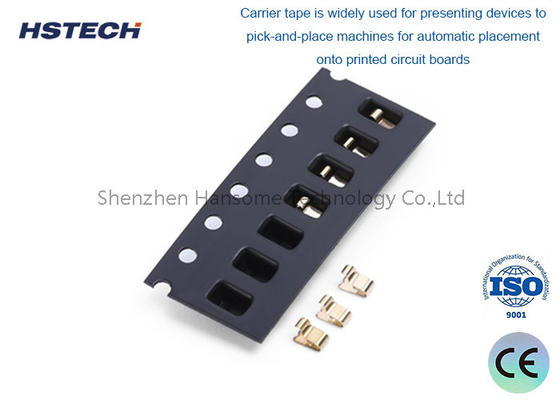

A, Function: Embossed carrier tape is used for packing the components, which it provides protection to integrated circuits and other devices from physical and electro-static discharge (ESD) damage during shipping and storage. Carrier tape is widely used for presenting devices to pick-and-place machines for automatic placement onto printed circuit boards.



Carrier tape size and it matched cover tape



Each carrier tape has it matched cover tape, the cover tape has the cold sealing and hot sealing options during the components packing,also the cover tape has the ESD options. Below is the dimension of the carrier tape and it matched cover tape diagram.



Carrier Tape(mm) 8 12 16 24 32 44 56 72 88 104
Cover Tape(mm) 5.4 9.3 13.3 21.3 25.5 37.5 49.5 65.5 81.5 97.5



Carrier Tape/SMD Carrier tape/SMT packing tape/Packageing for Electronic components
Kinds of materials: PS/ABS/PET/PC/PVC

Color: Black and Transparent.
Many standard sizes.

And just need components, components drawing or carrier tape drawing, that we can make customized carrier tape for you!

Used with Cover tape for electronic components packing.


Application



The embossed carrier tapes are widely used in the surface packaging, carrying and transmission of the surface mounting equipments,for example, the mini PCB , IC ,LED chip, connectors, diodes, dynatrons, resistors, conductors, capacitors, fuses, switches, relays, resonators, radome, socket component,etc.

We supply high quality embossed carrier tapes and custom carrier tapes according to customers's demand.
If you need a carrier tape to allow parts to be placed and sealed to go onto a pick and place system, then we have options for you.



SMD Component Counter: Cold Sealing Cover Tape for LED Packing 0SMD Component Counter: Cold Sealing Cover Tape for LED Packing 1



SMD Component Counter: Cold Sealing Cover Tape for LED Packing 2SMD Component Counter: Cold Sealing Cover Tape for LED Packing 3
