| Place of Origin: | China |
| Brand Name: | HSTECH |
| Certification: | EIA |
| Model Number: | CT-03 |
| Minimum Order Quantity: | 200 meters |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton package |
| Delivery Time: | 3 days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 10000 reels per month |
| Product Name: | Embossed Carrier Tape | Material: | PC/PS/PET |
|---|---|---|---|
| Width: | 8mm/12mm/16mm/44mm,etc | Thickness: | 0.14`2mm |
| Color: | Black,transparent | If ESD: | Yes |
| Cover Tape: | Included If Customer Request | Reel: | Plastic |
SMD Component Counter with Width 4-104mm Polystyrene/Polycarbonate/PET Carrier Tapes
Introduction

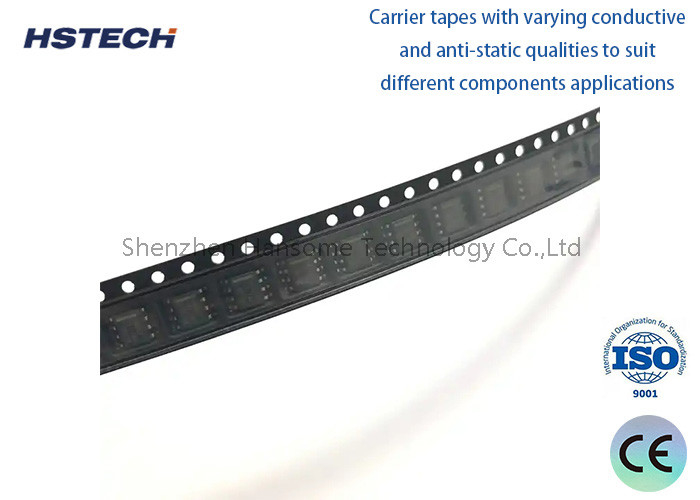

The embossed carrier tape are made of polystyrene, polycarbonate and PET. Carrier tapes with varying conductive and anti-static qualities to suit different components applications.The Carrier tape has pockets that are shaped to match the contours of the component to be carried. The width of carrier tape is between 8 and 104 mm, we also can custom for customers based on their demand.
The whole packing reels including the carrier tape, cover tape and external reell, customers use the manual or automatic tape and reel machine to pick the components into the carrier tape, at the same time use the cover tape to cover the components tightly to protect and fix the components in the tape, at last packing to a whole reel.
Carrier tape specification
| Material | PS,PC,PET |
| Type | Conductive(antistatic)and non-conductive(non-antistatic) |
| Color | Black, Transparent |
| Width | 4-104mm |
| Thickness | Except the standard size, we also customs |
Carrier tape size and it matched cover tape
Each carrier tape has it matched cover tape, the cover tape has the cold sealing and hot sealing options during the components packing,also the cover tape has the ESD options. Below is the dimension of the carrier tape and it matched cover tape diagram.
| Carrier Tape(mm) | 8 | 12 | 16 | 24 | 32 | 44 | 56 | 72 | 88 | 104 |
| Cover Tape(mm) | 5.4 | 9.3 | 13.3 | 21.3 | 25.5 | 37.5 | 49.5 | 65.5 | 81.5 | 97.5 |

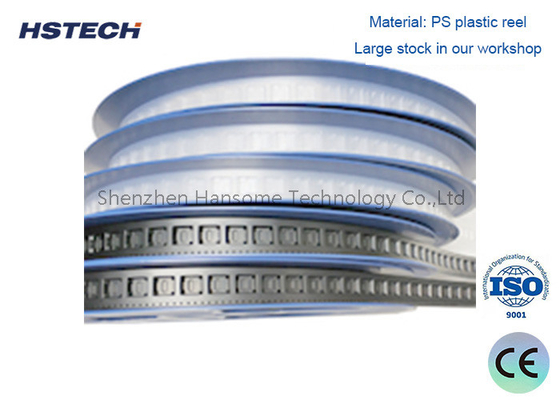

About our plastic reel
1. We have a large stock of reels.
2. Our mainly structure: Button style or jointing style.
3. We can printing you company's name and logo on the plastic reel
4. PS or Hips plastic reel.
5. The Size:
180mm(Outer Dia) * 60mm(Inner Dia)*8/12/16/24mm:white/black/blue.
330mm(Outer Dia) * 80/100/150/200/250mm(Inner Dia)*8mm-88mm:white/black/blue.
380mm(Outer Dia) * 80/100/150/180/200mm(Inner Dia)*12mm-88mm:white/black/blue.
