SMD Component Counter: Cold/Hot Sealing Embossed Carrier Tape for LED Packing
A, Function: Embossed carrier tape is used for packing the components, which it provides protection to integrated circuits and other devices from physical and electro-static discharge (ESD) damage during shipping and storage. Carrier tape is widely used for presenting devices to pick-and-place machines for automatic placement onto printed circuit boards.

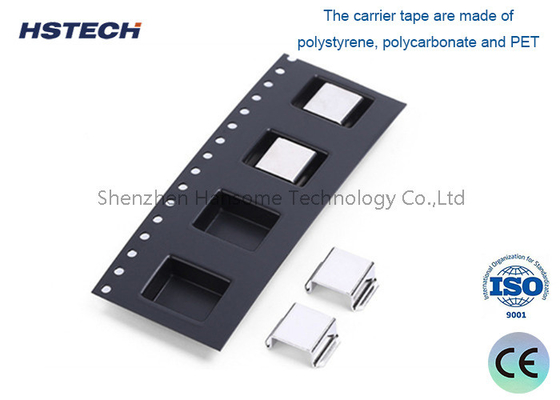

The carrier tape are made of polystyrene, polycarbonate and PET. Carrier tapes with varying conductive and anti-static qualities to suit different components applications.The Carrier tape has pockets that are shaped to match the contours of the component to be carried. The width of carrier tape is between 8 and 104 mm, we also can custom for customers based on their demand.

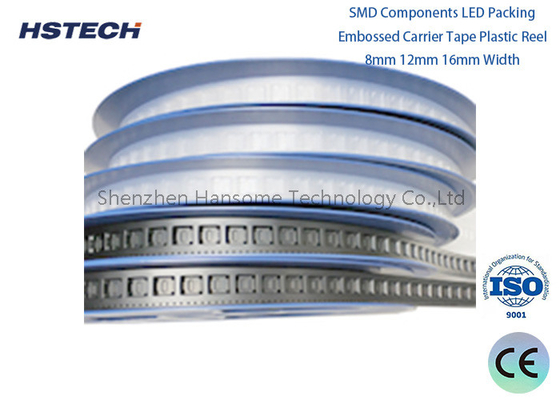

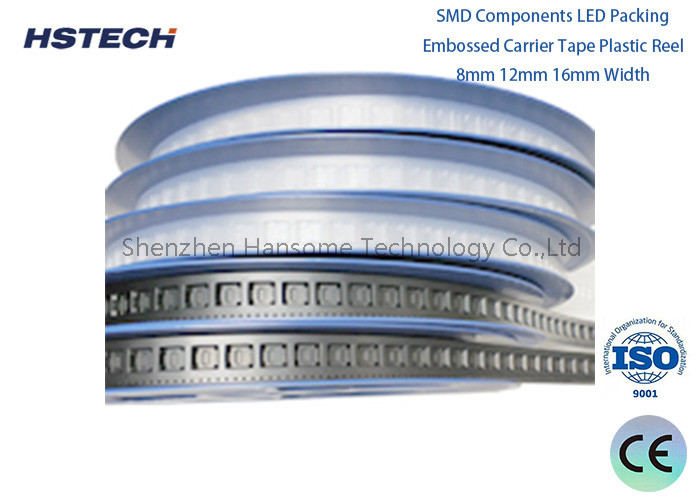

The whole packing reels including the carrier tape, cover tape and external reell, customers use the manual or automatic tape and reel machine to pick the components into the carrier tape, at the same time use the cover tape to cover the components tightly to protect and fix the components in the tape, at last packing to a whole reel.
Carrier tape size and it matched cover tape
Each carrier tape has it matched cover tape, the cover tape has the cold sealing and hot sealing options during the components packing,also the cover tape has the ESD options. Below is the dimension of the carrier tape and it matched cover tape diagram.
We also manufacture reels by injection moulding. They are made of polystyrene in different sizes and designs. We can also produce them in anti-static or conductive options under the requirements
The embossed carrier tapes are widely used in the surface packaging, carrying and transmission of the surface mounting equipments,for example, the mini PCB , IC ,LED chip, connectors, diodes, dynatrons, resistors, conductors, capacitors, fuses, switches, relays, resonators, radome, socket component,etc.
We supply high quality embossed carrier tapes and custom carrier tapes according to customers's demand.
If you need a carrier tape to allow parts to be placed and sealed to go onto a pick and place system, then we have options for you.
