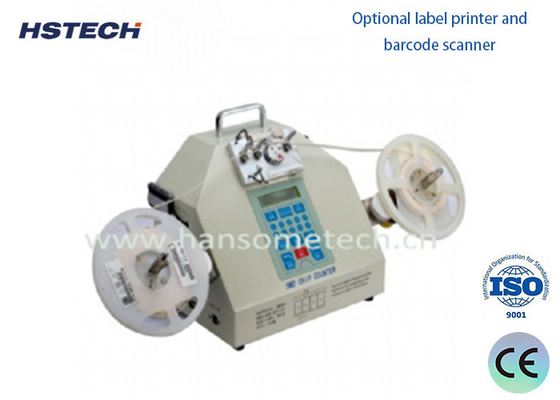

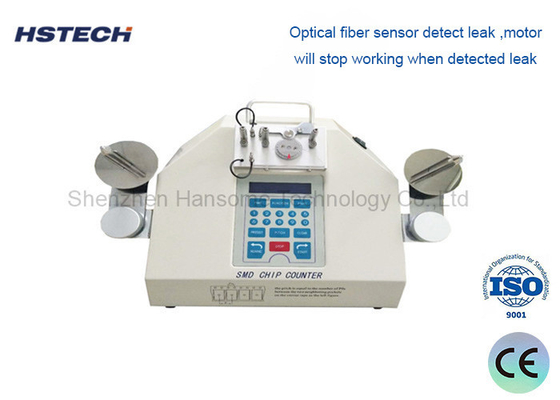

High Efficiency 30W SMD Counter for 7-13 Inch Reel,Zero Error,Speed Adjustable

Brand Name:	HSTECH
Model Number:	HS-PC800
MOQ:	1 sets
Price:	Negotiable
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	500 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

SMD Components Counter

Other Name:

SMD Chip Counter

Power Supply:

AC110V,AC220V, 50/60Hz

Wattage:

30W

Product Size:

450*270*180mm

Weight:

8kg

Packaging Details:

Carton package

Supply Ability:

500 sets per month

Product Description

High Efficiency 30W SMD Counter for 7-13 Inch Reel,Zero Error,Speed Adjustable

Features

1. The leakage function SMD part counter, the operation is simple, the positive and negative can be counted, and the function is really preset.
2. Leakage detection detection device can be switched to check whether the empty material stops or does not stop two states, accurate calculation of quantity and zero error.
3. The quantity of preset parts can be used for the design of SMT belt type parts.
4. It can be equipped with scanning gun and bar code printer for easy management.

Specification

Model	HS-PC800
Power supply	AC110V,AC220V, 50/60Hz
Wattage	30W
Counting time	19 seconds to 2 min
Counting range	-59999~59999
Pitch size	2,4,8,9,10,12,16,24,32mm
Tape width	8,12,16,24,32,44,56,72,88 m
Plastic reel size	7-13 inch
Application	Suitable for all components
Product size	450270180mm
Package size	460280190mm
Gross weight	8kg
