Desktop Screw Fastening Machine with Stepper Motor and Timing Belt Driven System

Brand Name:	HSTECH
Model Number:	HS-SL5331
MOQ:	1 set
Price:	Negotiable
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	100pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

Automatic Screw Lock Machine

Material:

Titanium And Titanium Alloy

OEM:

Axis:

4 Axis

Suitable Screws:

M1-M5

Drive System:

Step Motor And Timing Belt

Packaging Details:

Wooden package, foam inside

Supply Ability:

100pcs per month

Product Description

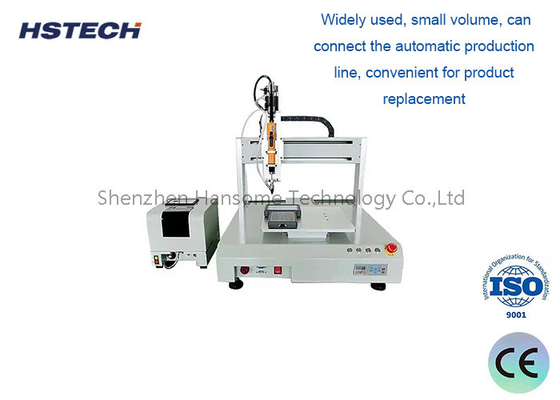

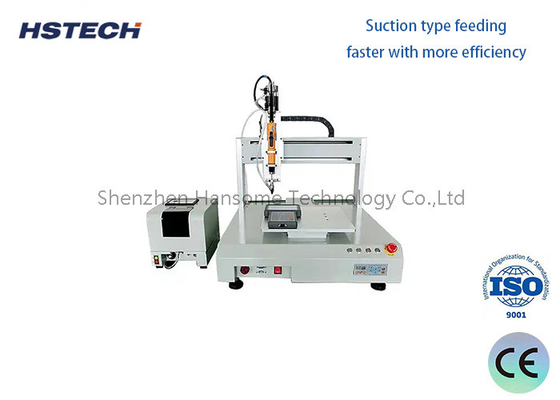

Desktop Screw Fastening Machine with Stepper Motor and Timing Belt Driven System

Features

1,Desktop operation is simple and clear, can be connected with the production line operation, easy to change products.

2,Y-axis can be double-positioned (double Y-axis) as needed, and the operator can operate the product up and down alternately.

3,The device is mainly used for locking screws of M1-M5 size.

4,Support CAD document input.

5,This automatic screw feeder is suitable for similar size screws with a length of ±5 mm.

Specfication

Model	HS-SL5331
Voltage	AC110V/220V,50/60Hz,Meanwell brand
X/Y1/Y2/Z working range	500/300/300/100mm
XYZ speed	Max XY:600mm/s,Z:300mm/s
Y platform	190*150mm
Repeat accuracy	0.02mm
Motor	Stepper motor(Shinano Kenshi brand)
Driven system	Timing blet for X/Y, Z axis screw
Document support	CAD,CorelDRAW
Loading capacity	X/Y:10kg,Z:5kg
Linear Guide	HIWIN(Taiwan brand)
Photoelectric switch	(Germany brand)
Cylinder	AirTAC
Suitable screws	M1 - M5
Machine size	720685597mm
Gross weight	75kg

Automatic identification and alarm
The machine is attached with automatic detection function, in case of screws not sucked up, screws slipping off and floating high phenomenon, the machine can automatically check the alarm to ensure the quality of the products. Improve production quality and efficiency.
