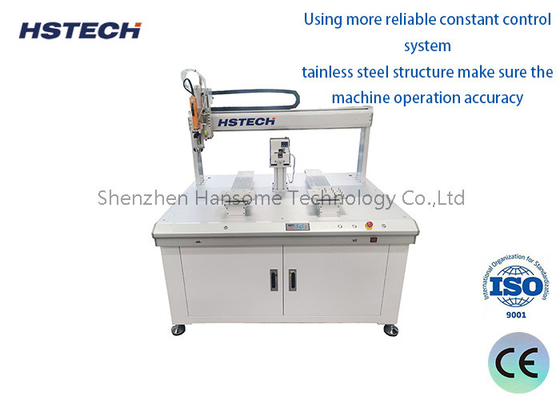

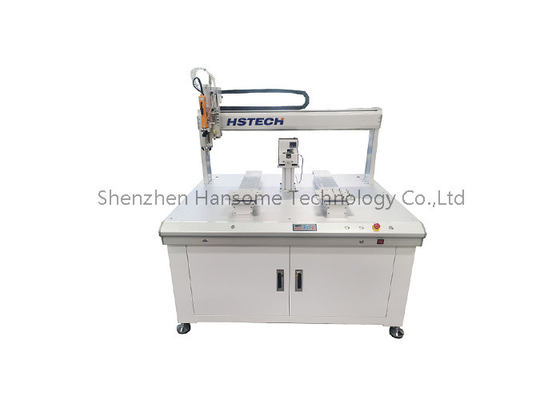

High Precision 6 Axis Screw Fastening Machine with CCD Positioning and Laser Sensor

Brand Name:	HSTECH
Model Number:	HS-VS800
MOQ:	1 set
Price:	Negotiable
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	50pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

CDD Automatic Screw Fastening Machine

Other Name:

Visual Screw Locking Machine

Axis:

6 Axis

Servo Motor:

Panasonic

Feeder:

NSRI(from Japan)

Material:

Sheet Metal

Packaging Details:

Wooden package, foam inside

Supply Ability:

50pcs per month

Product Description

CCD Vision 6 Axis Screw Locking / Fastening Machine with PC Display

Working Principle

Adsorption type automatic locking screw machine, the use of the body above the installation of a screw feeder, screws in the form of an arrangement of automatic feeding to the bottom of the electric batch head, through the suction nozzle compressed air generated by the adsorption force, to take away individual screws, and then run the positioning of the product holes, the electric batch head downward automatically locked into the product.

Application

This CCD auto screw locking machine is widely used for locking the casing of smart phone, power adapter, PCB electronic products, batteries, small household applicance, wifi routers, power supply, toy wheels, and other automotive parts and small electronic products.

Specfication

Model	HS-VS800
Product name	Auto CCD screw fastening machine
Power supply	AC380V
Working axis	6 axis
Screw diameter range	0.8-2.0mm
Repeat accuracy	±0.02mm
Motor	Panasonic servo motor
Linear guide/screw	HIWIN brand KK module
Control card	LEADSHINE brand high performance control card
Screw driver	Vauguard
Camera	Germany brand BASLER industrial camera
Lens	High resolution high performance lens
Light source	Industrial LED source
Vacuum generator	AIRTEC
Feeder	NSRI from Japan
Optoelectronic parts	Schneider / Omron
Machine size	9307801700mm
Gross weight	350kg

High Precision 6 Axis Screw Fastening Machine with CCD Positioning and Laser Sensor 0
