Product Name: Offline PCBA Router Machine Platform: Double
Working Platform: 300*350mm Repeat Accuracy: ±0.01
Cutting Accuracy: ±0.03 Machine Dimension: 1200*1050*1440mm(L*W*H)

PCB Router Machine - CCD Visual Aligement, Hiwin Guide, Tool Life Monitor, 0.5-3mm Cutting


Machine introduction

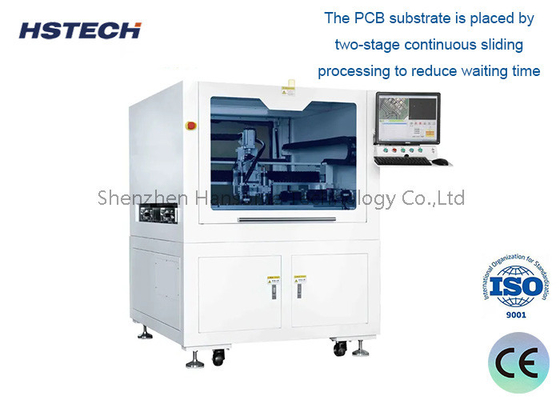

This machine RM-F550 is a new developed Router Machine. It is used to depaneling a whole printed circuit board assemblies (PCBA) into individual PCBa boards. The machine adopt a very stable platform to ensure the working precision, the working platform size is 300*350mm.

It has a larger platform option at 400*600mm.The machine provides user friendly "visual" programming for rapid and accurate online programming,also can detect the depaneling process.


Main features



1.Simple and friendly user-interface design with HMI Windows 7 operating system.

2.Automatic cutting path correction system.

3. Can single-step program editing and modification by high pixel CCD program production and block program.

4.Fixture-based highly efficient dust vacuum system.

5.Cost Effective.Not only are depaneling needs taken care of with efficiency and simplicity, but the low cost will save money and
time.

6.The price is undeniably practical and the ease in which the machinery can be operated.



Sepcfication



Model RM-F328
Structure Single Spindle,double platform
Efficienty cutting length 300*350mm

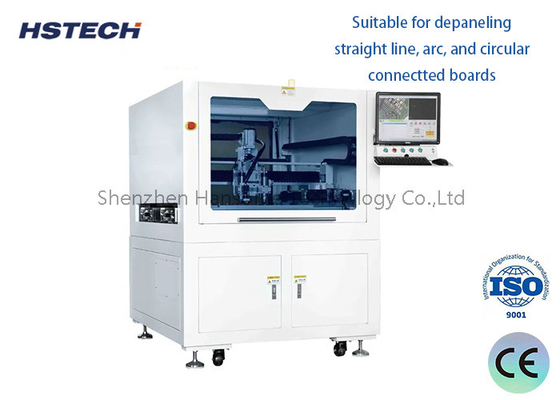

Cutting types Straight line, arc, circular
Moving speed X/Y axis 1000mm/s,Z axis 500mm/s
Dust Collection method Upper collection
Spindle   40000~60000rpm
Routing Spindle Max60000rpm
Cutting speed 1-100mm/s adjustment
Cutting accuracy ±0.03mm
Repeat accuracy ±0.01mm
Programming colorful CCD
External connect USB
Router kit milling cutter,φ0.8~φ3.0 left rotation,Shank Tungsten Steel
Power supply 380V
Machine power 2000W
Dust collector size 600*470*730mm
Dust collector power 2.2Kw,380V
Dust collector air pressure 4-6KG/cm³
Security door Manual door
Error alarm Yes
Program method Self programing,camera controlled by keyboard and mouser





Machine details



PCB Router Machine - CCD Visual Aligement, Hiwin Guide, Tool Life Monitor, 0.5-3mm Cutting 0
