4 Axis Chain Moving Closed Loop Automatic Screw Bits Fastening Machine

Brand Name:	HSTECH
Model Number:	HS-SL5331
MOQ:	1 set
Price:	Negotiable
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	100pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

4Axis Screw Fastening Machine

Feeding:

Suction Feeding

Screw Feeder:

Single, Or Customized Two

Screws Compatible:

M1-M6, Or Customized

Moving Range:

500*300*300*100mm

Material:

Aluminum

Port:

Shenzhen

Warranty:

One Year

Packaging Details:

Wooden package, foam inside

Supply Ability:

100pcs per month

Product Description

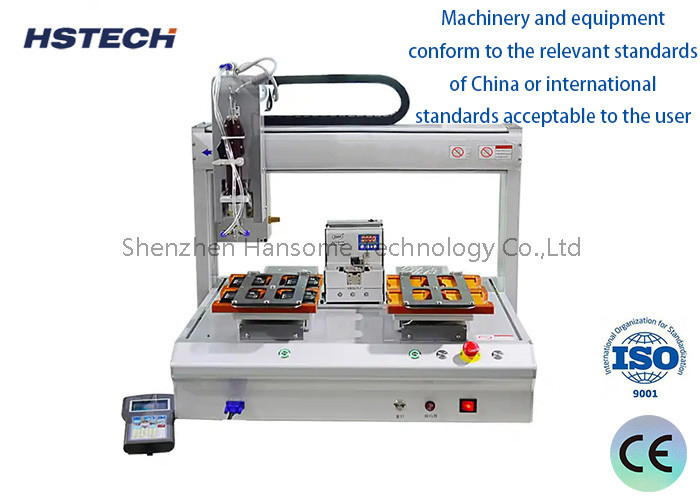

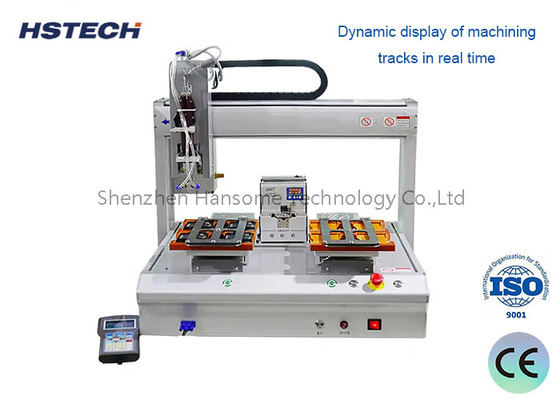

4 Axis Chain Moving Closed Loop Automatic Screw Bits Fastening Machine

Introduction

This screw machine is a widely used screw fastening machine, compatible for many industries, smart phone, PC, electric device, furniture industry, etc. It's a 4 axis screw lock machine, with double working station, single screw driver and single feeder, the whole machine include a feeding system and a screw-locking system, the feeding part responsible for screw-arrangement machine, is a relatively simple type of screw arranged in a row for the purpose of improving work efficiency.

Specification

Model	HS-SL5331
Production name	4Axis Automatic Screw Locking Machine
Moving range(X/Y1/Y2/Z)	500300300*100mm
X/Y1/Y2 axis moving speed	Closed loop motor :1-800mm/s
Z axis moving speed	Closed loop motor: 1-300mm/s
X/Y1/Y2 axis max load	Closed loop motor: 5KG
Z axis max load	Closed loop motor: 3KG
Power supply	AC110V/220V, 50/60Hz
Repeat accuracy	±0.02mm
Document support	CAD CorelDraw
Suitable screws	M1-M6
Machine dimension	746585800mm
Machine weight	65kg
