Small Volume 4 Axis Screw Fastening Machine with Intelligent Inspection Function

Brand Name:	HSTECH
Model Number:	HS-SL5331
MOQ:	1 set
Price:	Negotiable
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	100pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

4Axis Screw Fastening Machine

Feeding:

Suction Feeding

Screw Feeder:

Single, Or Customized Two

Screws Compatible:

M1-M6, Or Customized

Moving Range:

500*300*300*100mm

Material:

Aluminum

Port:

Shenzhen

Warranty:

One Year

Packaging Details:

Wooden package, foam inside

Supply Ability:

100pcs per month

Product Description

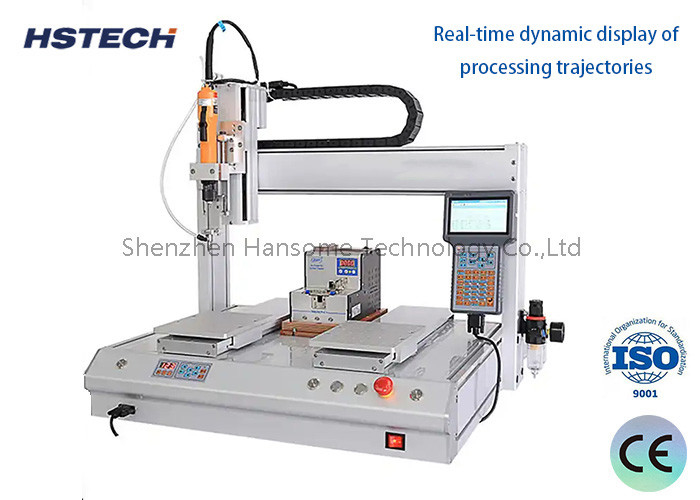

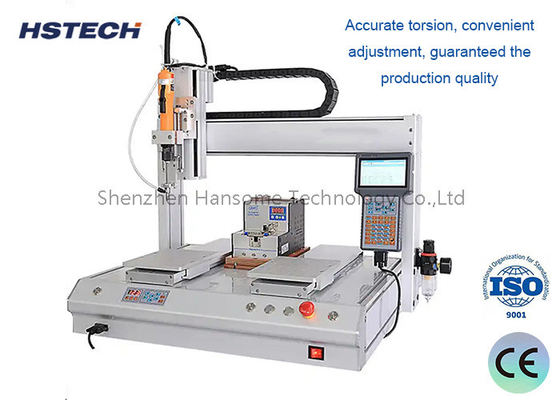

Small Volume 4 Axis Screw Fastening Machine with Intelligent Inspection Function

Features

1, Widely used, small volume, can connect the automatic production line, convenient for product replacement.
2, With intelligent inspection function, inspection miss locked,unstable locked,loose screw and so on.
3, Double Y platform, so the operator can load alternately

4, 4 Axis operation, moving range 500*300*300*100mm.
5, High level automation degree, easy operation which the staff can master and debug quickly.
6, Touch screen display or teach pendant programmable achieve more operations, after setting the programming, the machine can be put into production, also easy for management.

7, Easy operation, operator can operate several machines at the same time.

8, With the function of leak detection, if a screw did not fill in place it can fill continually or start alarm processing.

Specification

Model	HS-SL5331
Production name	4Axis Automatic Screw Locking Machine
Moving range(X/Y1/Y2/Z)	500300300*100mm
X/Y1/Y2 axis moving speed	Closed loop motor :1-800mm/s
Z axis moving speed	Closed loop motor: 1-300mm/s
X/Y1/Y2 axis max load	Closed loop motor: 5KG
Z axis max load	Closed loop motor: 3KG
Power supply	AC110V/220V, 50/60Hz
Repeat accuracy	±0.02mm
Document support	CAD CorelDraw
Suitable screws	M1-M6
Machine dimension	746585800mm
Machine weight	65kg

Main parts brand

1, Motor: Shinano 2, Guide: Hiwin 3, Photoelectric switch: Omron 4, Power supply: Meanwell

Small Volume 4 Axis Screw Fastening Machine with Intelligent Inspection Function 0

We have not only SMT machines and equipment, but also many machine parts.We are supplier of smt machine parts and equipment. such as Feeder,Nozzle,PCB board turnover cart,SMT grease,Solder paste mixer,SMD counter,Laser Sensor,Filter,KIC thermal profiler,Servo Motor and so on.

At Shenzhen Hansome Technology, we strive for excellence in delivering cutting-edge technology and exceptional customer service. We look forward to the opportunity to serve your business needs. Should you have any questions or require further information, please do not hesitate to contact us!
