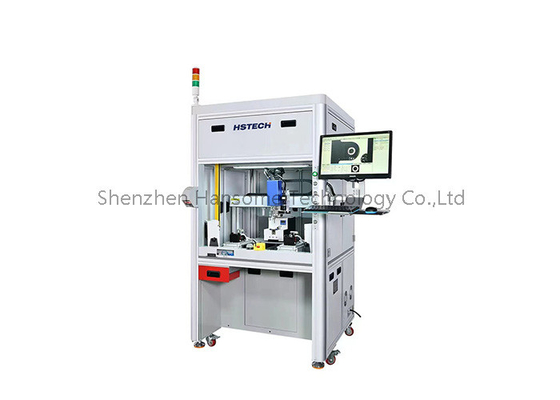

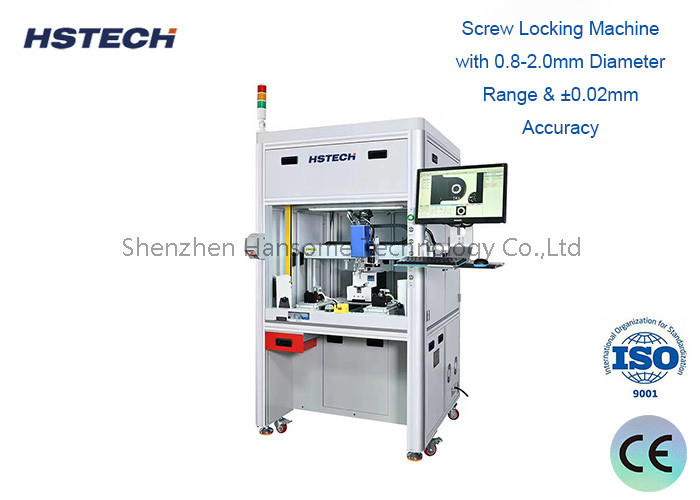

CCD Vision Auto Screw Fastening Machine with High Performance Control Card

Brand Name:	HSTECH
Model Number:	HS-VS810
MOQ:	1 set
Price:	Negotiable
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	50pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

Visual Detection Screw Fastening Machine

Other Name:

CCD Screw Locking Machine

Axis:

4 Axis

Guide:

Hiwin

CCD:

Industrial Camera From Germany

Communication:

MES System

Packaging Details:

Wooden package, foam inside

Supply Ability:

50pcs per month

Product Description

CCD Automatic Screw Fastening Machine with Panasonic Motor & HIWIN KK Module

Introduction

Blowing automatic screw machine to replace most industries that require manual screw locking. Adapt to screw range M1-M8. The servo lock mechanism performs precise point-to-point movement of the locking screw, which has high precision and fast efficiency. Using touch screen for software programming, simple to use and easy to operate. At the same time, it has the functions of detecting missing screws, floating locks, sliding teeth, etc.

Specfication

Model	HS-VS810
Product name	Auto CCD screw fastening machine
Power supply	AC380V
Working axis	4 axis
Screw diameter range	0.8-2.0mm
Repeat accuracy	±0.02mm
Motor	Panasonic servo motor
Linear guide/screw	HIWIN brand KK module
Control card	LEADSHINE brand high performance control card
Screw driver	Vauguard
Camera	Germany brand BASLER industrial camera
Lens	High resolution high performance lens
Light source	Industrial LED source
Vacuum generator	AIRTEC
Feeder	NSRI from Japan
Optoelectronic parts	Schneider / Omron
Machine size	9307801700mm
Gross weight	350kg
