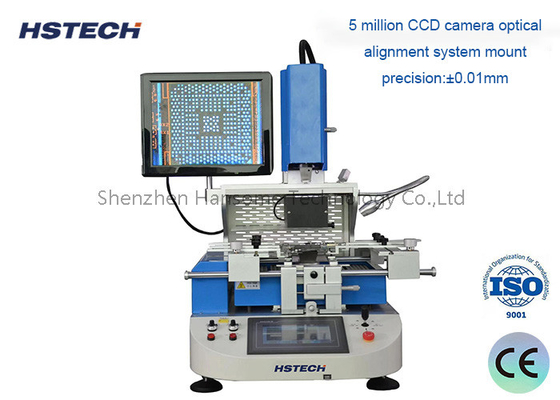

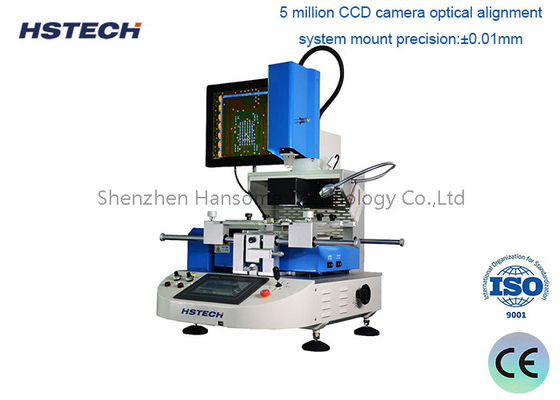

High Precision CCD Color Align System with Stepping Motor for Mobile Phone BGA Rework

Brand Name:	HSTECH
Model Number:	HS-700
MOQ:	1 set
Price:	Negotiable
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	100 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

Mobile Phone BGA Rework Station

Warranty:

1 Year

Control:

Touch Screen

PLC:

MITSUBISHI

Relay Brand:

Schneider

Optoelectronic Switch:

OMRON

Material:

Aluminum Alloy

Condition:

New

Thickness:

0.3 - 5mm

Signal:

SMEMA

Application:

Electronic Assembly

Color:

Silver

Control System:

PLC

OEM/ODM:

Available

Total Power:

2600W

Power Supply:

AC220V

Air Pressure:

4-6bar

Mounting Accuracy:

±0.01mm

Type:

Automatic

Weight:

30KG

Packaging Details:

Wooden package

Supply Ability:

100 sets per month

Product Description

5 Modes Stepping Motor CCD Color Align System Mobil Phone BGA Rework Station

Specification

Mobile Phone BGA Rework Station	Model:HS-700
Power Supply	AC 100V / 220V±10% 50/60Hz
Total power	2600W
Heater power	Top heater 1200W(Max), bottom heater 1200W(Max)
Electric material	Driving motor + smart temp. controller + color touch screen
Temperature control	high precision K-sensor+ closed loop control + independent temp.controller (the precision can reach ±1℃)
Sensor	1pcs
Locating way	V shape PCB support + external universal fixture + laser light for centering and positioning
Overall dimension	L450mmW470mmH670mm
PCB size	Max 140mm160mm Min 5mm5mm
BGA size	Max 50mm50mm Min 1mm1mm
Applicable PCB thickness	0.3 - 5mm
Mounting accuracy	±0.01mm
Weight of machine	30KG
Mount chip weight	150g
Working modes	Five: Semi-auto/Manual/Remove/Mount/Weld
Usage Repair	chips / phone motherboard etc

Features

1. 5 work modes

2. 15''HD LCD monitor

3. 7''HD color touch screen

4. stepping motor

5. CCD color optical alignment system

6.Temperature accuracy within ±1℃

7.Mounting precision within ±0.01mm

8.Repair success rate: 99% +

9. Independent research and development of single-chip control

Main configuration

1.Five working modes
2.independently developed microcontroller control
3.stepping motor
4.7.2 inch true color touch screen
5.Infrared laser lamp positioning6.0ptical alignment and precise installation

Advantages

1.Automatic suction and installation.

2.The built-in vacuum pumprotates by 90 ° to accurately adjust andinstall the suction nozzle.

3.Built in pressure testing device,upon detecting pressure,the upper heating head automaticallystops descending to preventPCB and BGA from being crushed.

4.Different vacuum suction cupswith different nozzles for different chips.

High Precision CCD Color Align System with Stepping Motor for Mobile Phone BGA Rework 0
