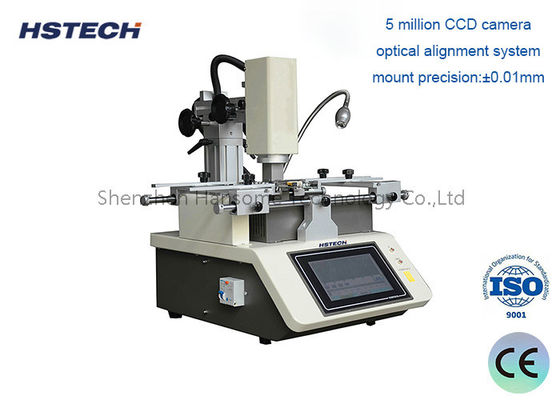

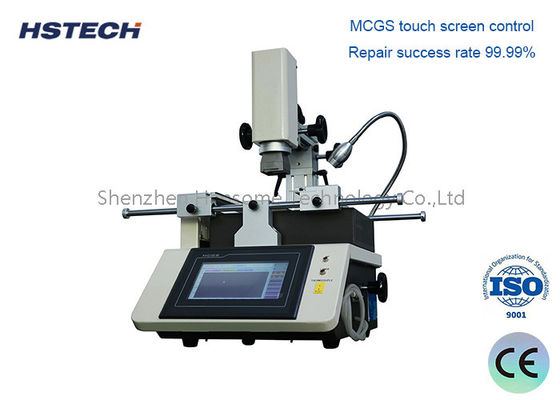

Manual BGA Rework Station with Industrial Touch Screen 3 Heating Zones and CE Certification for PCB Handling Equipment

Brand Name:	HSTECH
Model Number:	HS-520
MOQ:	1 set
Price:	Negotiable
Payment Terms:	T/T,Western Union
Supply Ability:	100 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

BGA Rework Station

Warranty:

1 Year

Control:

Touch Screen

PLC:

MITSUBISHI

Relay Brand:

Schneider

Optoelectronic Switch:

OMRON

Material:

Aluminum Alloy

Condition:

New

Thickness:

0.3 - 5mm

Signal:

SMEMA

Application:

Electronic Assembly

Color:

Silver

Control System:

PLC

OEM/ODM:

Available

Total Power:

2600W

Power Supply:

AC220V

Air Pressure:

4-6bar

Mounting Accuracy:

±0.01mm

Type:

Automatic

Weight:

30KG

Packaging Details:

Wooden package

Supply Ability:

100 sets per month

Highlight:

Industrial Touch Screen BGA Rework Station

3 Heating Zones BGA Chip Repair Machine

CE Certification PCB Handling Equipment

Product Description

Manual BGA Rework Station with Industrial Touch Screen

Professional 3 Heating Zones Manual BGA Rework Station with Industrial Touch Screen & CE Certification

Product Specifications

Model	HS-520
Power Supply	AC 220V±10% 50/60Hz
Total Power	3800W
Overall Dimensions	L460mm × W480mm × H500mm
PCB Size	Max 300mm × 280mm / Min 10mm × 10mm
BGA Size	Max 60mm × 60mm / Min 1mm × 1mm
PCB Thickness	0.3-5mm
Weight	20KG
Warranty	3 Years (First Year Free)
Applications	Chips, Phone Motherboards, and Electronic Components

Key Features

Exceptional repair success rate exceeding 99% for BGA rework operations
Industrial-grade touch screen interface for precise control
Independent 3 heating zones with hot air heating and infrared preheat (±3℃ accuracy)
CE certified with double over-temperature protection for safety
Versatile functionality: solder, desolder, mount, pick and replace chips
360-degree rotatable hot air nozzle for optimal positioning
Advanced temperature control with eight segments for rising temperature, constant time, and temperature slope
High-accuracy K-type thermocouple close-loop control system
External sensor for precise temperature detection and real-time curve analysis
Compatible with BGA, VGA, CCGA, QFN, CSP, LGA, SMD, and other components
