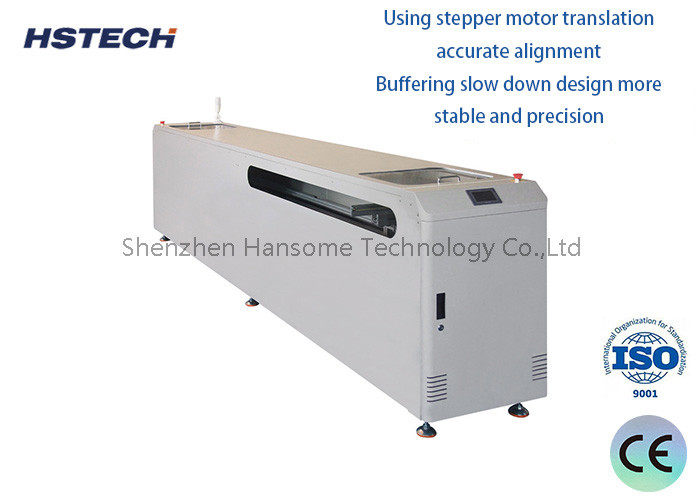

Stable and Precise PCB Handling Equipment with Buffering Slow Down Design

Brand Name:	HSTECH
Model Number:	HS-500SC
MOQ:	1 set
Price:	Negotiable
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	100 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

Shuttle Conveyor

Color:

White

Power Supply:

Meanwell Driver,AC100-240V

PLC:

MITSUBISHI

Relay:

Schneider

Optoelectric Switch:

OMRON

Singal:

SMEMA

Packaging Details:

Wooden package,with foam

Supply Ability:

100 sets per month

Product Description

Buffering Slow Down Design PCB Board Handling Equipment Type Case

This machine also called PCB translation machine,which is used for transporting boards from one line into two lines or vice versa,the orientation of the board won't change during traversing.

Specification

Model	HS-500SC
PCB dimension	(5050)~(500460)
Power supply	AC100-240V meanwell brand
Transport height	900±20mm
Transport direction	L to R, or R ro L,(optional)
PCB thickness	Min 0.4mm
Machine dimension	600(1500~4800)1100mm
Weight	150~350kg

Features

1, PLC control system.

2, With the function for transports the boards from 1 line to 2 lines, or combined 2 lines to 1 line, and by-pass function.
3, Using stepper motor translation accurate alignment
4, Buffering slow down design more stable and precision
5, Width adjustable, enclosed type case for safety
6, Standard SMEMA

SMT production line equipment

1. Universal SMT machine: Using the program edited by the device to mount components onto designated parts positions, it can mount SOP 28 pin or more (including components that can be mounted by high-speed machines) roll, disc, or tubular packaging components. Its characteristics are high precision and diversity, but its installation speed is inferior to high-speed machines.
2. Reflow soldering: Use SMT solder paste or red glue to set an appropriate temperature curve to complete the soldering action between the solder paste and the part.
3. Unloader: The board is loaded into the magazine through a transfer track.

Stable and Precise PCB Handling Equipment with Buffering Slow Down Design 0
