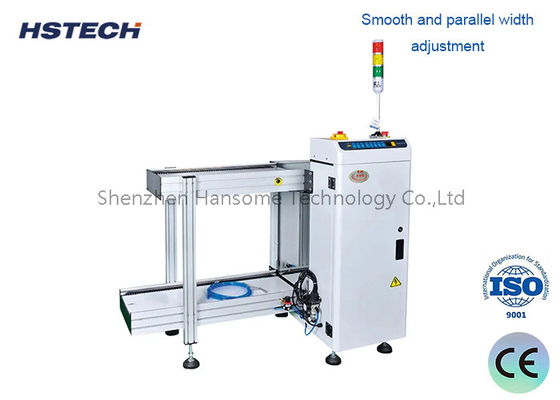

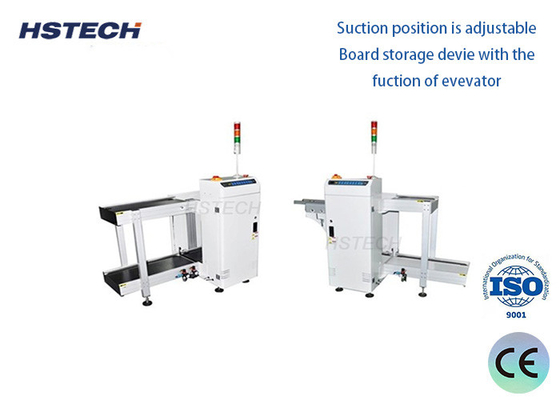

HS-460LD PCB Loader with True Color Touch Screen Control and Selectable Pitch Sizes

Brand Name:	HSTECH
Model Number:	HS-250LD
MOQ:	1set
Price:	Negotiable
Payment Terms:	D/P, T/T, Western Union, MoneyGram
Supply Ability:	200 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

PCB Loader

Color:

White

Power Supply:

AC110V/220V,50/60Hz

PLC:

MITSUBISHI

Relay:

Schneider

Optoelectric Switch:

Omron

Packaging Details:

Wooden package

Supply Ability:

200 sets per month

Product Description

Sheet Metal SMEMA Communication Interface PCB Loader Board Handling Equipment

Application

This machine is used for the start of SMT production line, by pusing the pcbs out of the magazine to the conveyor of downstream machine.

Specification

Model	HS-250LD	HS-330LD	HS-390LD	HS-460LD
Voltage	AC110V/220V,50/60Hz,single phase,max 300A
PCB dimension	(5050)~(350250)	(5050)~(455330)	(5050)~(530390)	(5050)~(530460)
Magazine dimension	355320565	460400565	535460565	535530565
Air supply	0.4~0.6Mpa
Transport height	920±20(mm) standard
Loading time	6 sec
Magazine replace time	around 20 secs
Transport direction	L to R, or R to L,optional
PCB thickness	Min 0.4mm
Pitches	1-4(10mm step)
Communication	SMEMA
Machine dimension	11007801200	14008601200	15009201200	160011201200
Weight	Approx 140kg	Approx 180kg	Approx 220kg	Approx 230kg

Features

1, True color touch screen control

2, Mitsubishi PLC

3, Magazine capacity: top 1, bottom 1, or customized

4, Selective pitch: 10mm,20mm,30mm,40mm

5, PCB transport direction: L - R, or R - L,optional

6, Manual/Automatic run mode selection

7, Front rail fixed or rear rail fixed,optional

8, Standard height for SMT application(920±20mm)

9, Tower light display

10, SMEMA signal

HS-460LD PCB Loader with True Color Touch Screen Control and Selectable Pitch Sizes 0

SMT production line equipment

1. Universal SMT machine: Using the program edited by the device to mount components onto designated parts positions, it can mount SOP 28 pin or more (including components that can be mounted by high-speed machines) roll, disc, or tubular packaging components. Its characteristics are high precision and diversity, but its installation speed is inferior to high-speed machines.
2. Reflow soldering: Use SMT solder paste or red glue to set an appropriate temperature curve to complete the soldering action between the solder paste and the part.
3. Unloader: The board is loaded into the magazine through a transfer track.
