Single Platform 60000RPM PC Programming PCB Depaneling Separator Machine

Single Platform 60000RPM PC Programming PCB Depaneling Separator Machine

Brand Name:	HSTECH
Model Number:	AR-7mini
MOQ:	1 set
Price:	Negotiable
Payment Terms:	T/T, Western Union, MoneyGram, D/P
Supply Ability:	50 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

Offline PCBA Depaneling Router

Other Name:

Automatic PCBA Separating Machine

Fixture:

Needed

Power Supply:

AC380V, 50/60Hz

Working Table Size:

50x50~260x310mm(max)

PCBA Loading Method:

Manual

Dust Collector:

Standard Configuration

Machine Body:

Stainless Steel

Packaging Details:

Wooden box

Supply Ability:

50 sets per month

Product Description

Single Platform 60000RPM PC Programming PCB Depaneling Separator Machine

Specification

Model	AR-7	AR-7 mini
Power supply	AC380V, 50/60Hz, 3KW
Working size	50x50~410x460mm(max)	50x50~260x310mm(max)
Loading mode	Manual
Cutting spindel/speed	5000~60,000 rpm
PCB thickness	0.4-4mm
Separating speed	1-100mm/s
Cutting accuracy	±0.05mm
Fixing type	Fixtures
Programing	Visioin teaching, inline programing
Milling kit	φ0.8~φ3.0 right side ratation, shank Tungsten steel
Dust collection method	Bottom dust collection
Dust collector	3 phase, 380V, 1.2KW
Noise	<75dB
Control system	Industrial PC
Spindle brand	Germany brand, Sycotec 4025
Servo motor	A5 series
Motion control	4 axis motion control board
Lead screw	C5 grinding screw lead
Linear guide	P rank silence guide
Camera	Germany brand Imaging 40W industril camera
Machine size	700800930 mm	500650930mm
Screen	17inch

Features

1, Offline automatic separating.

2, It's a mini PCBA router, suitable for small size PCB, and factory room saving requirement solution.

3, Customized fixtures.

4, PC and CCD visual system.

5, Programming with compensation and dust collection.

6, Available for max 410-510mm size PCBA.

7, Flexible for cutting two differenct type products.

8, Open platform for manual feeding and unloading, also can equipped with optional mechanical arm(robot).

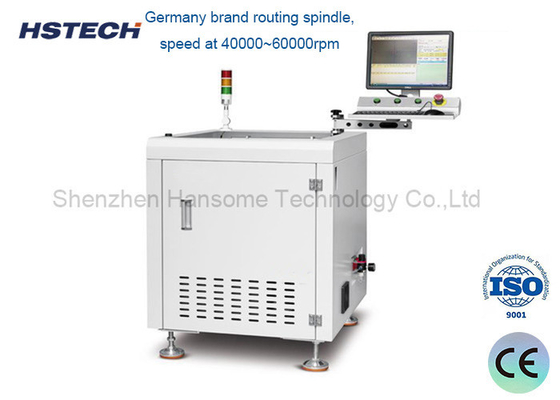

Single Platform 60000RPM PC Programming PCB Depaneling Separator Machine 0

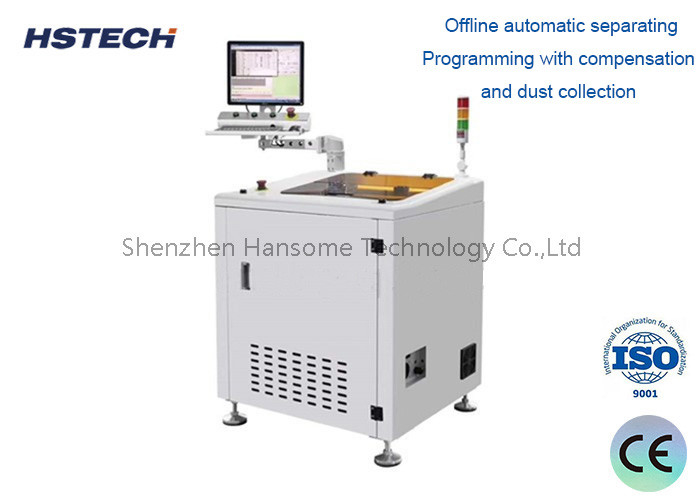

Single Platform 60000RPM PC Programming PCB Depaneling Separator Machine 1

Single Platform 60000RPM PC Programming PCB Depaneling Separator Machine 2

We have not only SMT machines and equipment, but also many machine parts.We are supplier of smt machine parts and equipment. such as Feeder,Nozzle,PCB board turnover cart,SMT grease,Solder paste mixer,SMD counter,Laser Sensor,Filter,KIC thermal profiler,Servo Motor and so on.

At Shenzhen Hansome Technology, we strive for excellence in delivering cutting-edge technology and exceptional customer service. We look forward to the opportunity to serve your business needs. Should you have any questions or require further information, please do not hesitate to contact us!

Shenzhen Hansome Technology Co.,Ltd(HSTECH)is a professional professional SMT board handlingequipment(Loader,Unloader, Buffer, Conveyor,etc)manufacturer. We are a high-tech enterprise with independent intellectual propertyrights,the company is mainly engaged in the research and development, productionand sales of SMT/THT production line board handling equipment.
