| Place of Origin: | China |
| Brand Name: | HSTECH |
| Certification: | CE,RoHS |
| Model Number: | HS-COU2000 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton package |
| Delivery Time: | 7~10 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 500 sets per month |
| Product Name: | SMD Component Counter | Other Name: | SMD Chip Counter |
|---|---|---|---|
| Condition: | New | Reel Size: | 7-13 Inch |
| Pitch Size: | 1/2,1,2,3,4,5,6,7,8,9,10,11,12,13,14mm | Counting Method: | Automatic |

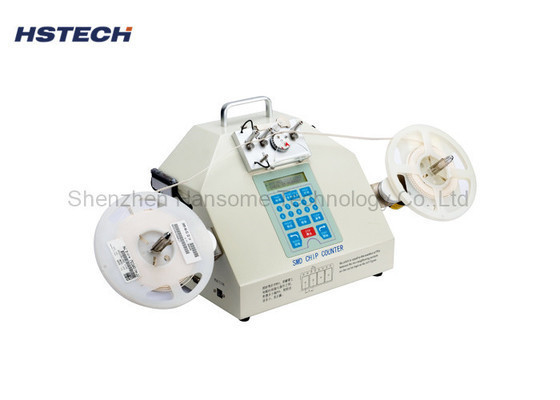

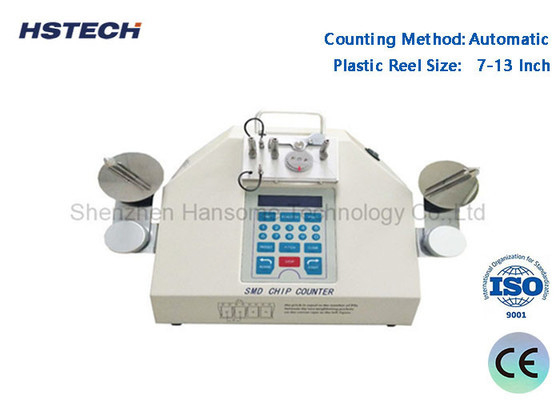

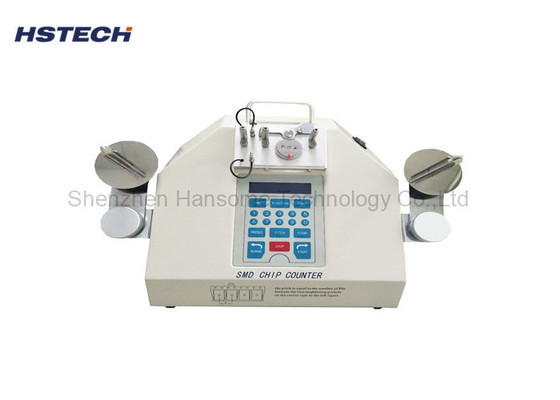

Panasonic Motor LED Digital Display SMD Component Counter for Chip Counting
Features
1. This machine used to counting components from one reel to another reel.
2. Panasonic driven motor.
3. Fiber induction missing components tracking.
4. Can preset the counting number.
5. The counter use drafting LCD screen. Small size, light weight, easy to carry
6. Use patent reflector,humanized operation platform.
7. Install bar code , convenience electronic component management.
8. Optical fiber sensor detect leak ,motor will stop working when detected leak.
Specification
| Model | HS-COU2000 | |||
| Display | Digital LED display. | |||
| Voltage | AC220, 50/60Hz | |||
| Power Supply | 25W | |||
| Motor Brand | Panosonic | |||
| Counting Range | “-59999~59999” | |||

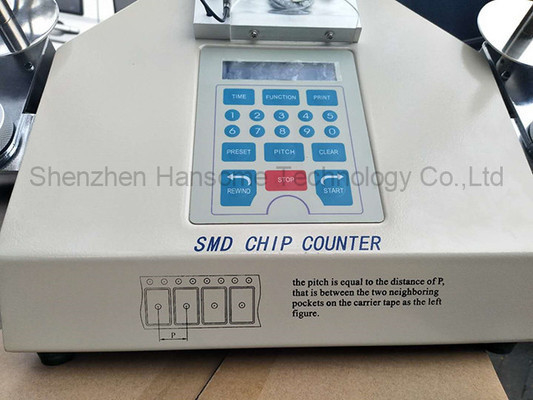

| Pitch Size | 1/2,1,2,3,4,5,6,7,8,9,10,11,12,13,14mm | |||
| Width of tape | 8,12,16,24,32,44,56,72,88 m | |||
| Plastic reel size | 7-13 inch | |||
| Universal Products | Suitable for all tape components | |||
| Product Size | 450*240*280mm | |||
| Package size | 610*305*350mm | |||
| Gross Weight | 9.5kg | |||
