Place of Origin: | China |
Brand Name: | HSTECH |
Certification: | CE,RoHS |
Model Number: | GD-01 |
Minimum Order Quantity: | 200 meters |
---|---|
Price: | Negotiable |
Packaging Details: | Carton package |
Delivery Time: | 3 days |
Payment Terms: | T/T, Western Union, MoneyGram |
Supply Ability: | 100000000 Meters per month |
Product Name: | Hot Sealing Cover Tape | Material: | Composite Material |
---|---|---|---|
Color: | Transparent | Type: | Hot Sealing Tape |
Condition: | New | Application: | Carrier Tape To Hold Components |
Length: | According To Customers' Sizes | Warranty: | 1 Year |

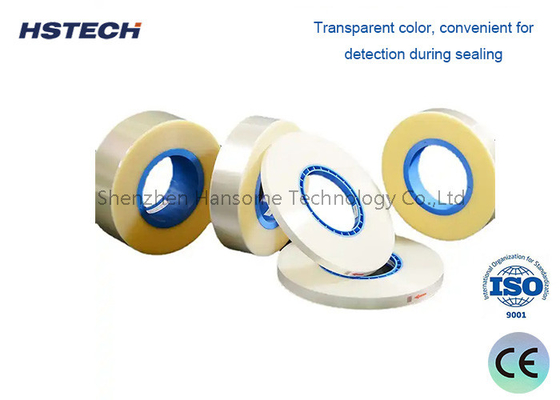

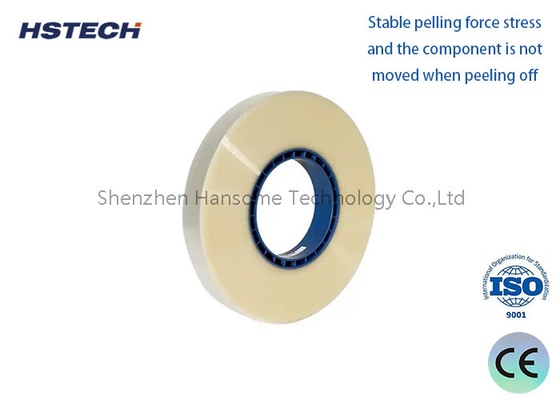

SMD Component Counter Cover Tape: Transparent Hot Sealing PET Material, 0.2Mpa Sealing Pressure, Width 9.3mm
Introduction
The cover tape is sealed to the carrier tape to hold the devices in the pockets. We offers a full range of cover tapes to meet various requirements.
Cover tape specification
Name | Cover tape |
Material | Composite material |
Calculation unit | Meter |
Tape width | 9.3mm |
Tape specs | 300M per reel |
Color | Transparent |
Sealing pressure | 0.2Mpa |
MOQ | 200meters |
Cover tape | hot sealing |
Reels | Available |
Carrier tape size and matched cover tape
Carrier Tape(mm) | 8 | 12 | 16 | 24 | 32 | 44 | 56 | 72 | 88 | 104 |
Cover Tape(mm) | 5.4 | 9.3 | 13.3 | 21.3 | 25.5 | 37.5 | 49.5 | 65.5 | 81.5 | 97.5 |
We have professional technicians & sales,relies on high-tech and tries our best tosupply high efficient and reliable board handling to our customers. At the same timeour experienced engineering team always grasps smart factory's developing direction,updates the products and technical according to the market demand, pursuit to makemore automation and cost-effective product all the time, we also do the OEM basedon different needs of our customer.
