Double Rocker Control 4-6bar Air Pressure BGA Rework Station with ±0.01mm Mounting Accuracy for Electronic Assembly

Brand Name:	HSTECH
Model Number:	HS-800
MOQ:	1 set
Price:	Negotiable
Payment Terms:	T/T,Western Union
Supply Ability:	100 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

BGA Rework Station

Warranty:

1 Year

Relay Brand:

Schneider

Optoelectronic Switch:

OMRON

Material:

Aluminum Alloy

Condition:

New

Application:

Electronic Assembly

OEM/ODM:

Available

Air Pressure:

4-6bar

Speed:

200-300pcs/min

Packaging Details:

Wooden package

Supply Ability:

100 sets per month

Highlight:

Double Rocker Control BGA Rework Station

4-6bar Air Pressure BGA Chip Repair Machine

±0.01mm Mounting Accuracy PCB Handling Equipment

Product Description

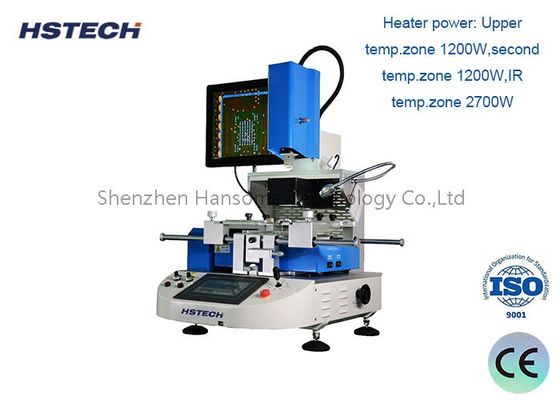

Double Rocker Control 4-6bar BGA Rework Station for Electronic Assembly

A specialized BGA Rework Station designed for the repair and rework of Ball Grid Array (BGA) components on printed circuit boards (PCBs). This essential equipment enables technicians to replace or repair BGAs without damaging the PCB or surrounding components in electronics manufacturing and repair environments.

Key Features

Integrated hot air head and mounting head design with automatic soldering and desoldering functions
Upper heaters utilize hot air system for faster heating, even temperature distribution, and rapid cooling (temperature range: 50-80°C)
Three independent heaters with synchronized automatic movement of upper and lower heaters
High-precision slider ensures accurate BGA and PCB mounting alignment
Premium German-imported heating materials in bottom preheating table
Integrated movement of preheating table, clamping device, and cooling system in X-axis
Motor-controlled automatic X and Y axis movement for faster alignment
Double rocker control for camera and heating platforms ensuring precision alignment
Built-in 360° rotating vacuum pump with fine-adjusting mounting suction nozzle
Automatic BGA pickup and mounting height detection with pressure control
High-resolution color optical vision system with split vision, zoom, and auto-focus capabilities
10-segment temperature control with multiple temperature profile storage
Multiple alloy nozzle sizes with easy replacement and full-angle positioning
Five thermocouple ports for real-time multi-point temperature monitoring
Solid operation display for reliable temperature control

Technical Specifications

Model	HS-800
Heater Power	Top heater 1200W (Max), bottom heater 1200W (Max)
Bottom Pre-Heating	IR 5000W
Temperature Control	K-type thermocouple, closed loop control
Locating Method	Outer or location hole
Overall Dimensions	L970mm × W700mm × H830mm
PCB Size	W650mm × D610mm
BGA Size Range	Max 80mm × 80mm, Min 1mm × 1mm
PCB Thickness	0.3 - 5mm
Mounting Accuracy	±0.01mm
Machine Weight	140KG

Applications

Suitable for mobile phones, hard drives, keyboards, electronic toys, computers, DVD players, plastics, electrical appliances, communication equipment, motors, tablets, notebook computers, digital cameras, remote controls, walkie-talkies, and various electronic processing applications.

Operational Benefits

Precision and Accuracy: Enables accurate removal and placement of BGA components, minimizing PCB damage risk
Cost-Effective Repairs: Extends PCB lifespan through repair capabilities, reducing replacement costs
Enhanced Workflow: Streamlines repair processes for faster turnaround in production and repair environments
Improved Quality Control: Ensures proper component soldering and alignment for enhanced product reliability
