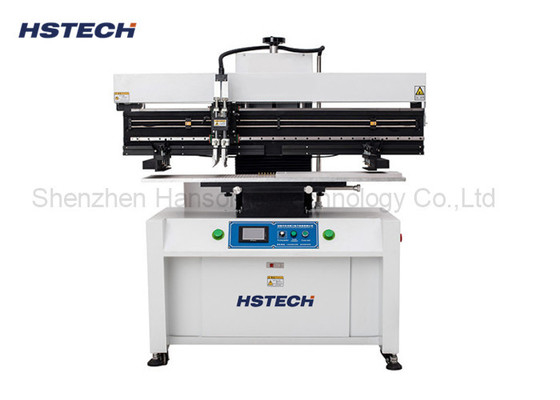

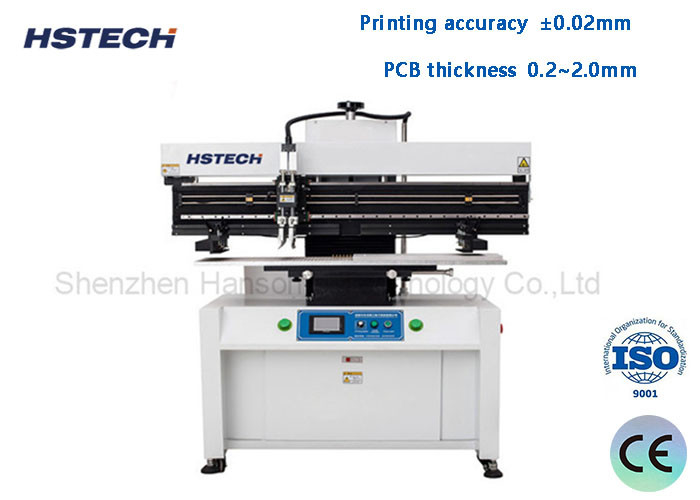

PCB Semi Automatic Solder Paste Printing Machine with 1.2 Meter LED Tube

1.2 Meter LED Tube PCB Semi Automatic Solder Paste Printing Machine

Equipment Overview

The semi-automatic solder paste printer is a key equipment for PCB (printed circuit board) assembly, mainly used to accurately print solder paste on the pads of PCB on the SMT (surface mount technology) production line. Compared with the fully automatic printer, it requires manual participation in some operations (such as PCB placement, alignment, etc.)

Specification

Features

1, Special design for 1.2meter LED tube, T8 or T5.

2, Touch screen control panel, easy operation and stable.

3, Using Delta smooth drving frequency inventor to ensure more stable scraper speed.

4, Flexible double-blade suspended squeegee, the sueegee can be adjusted up and down to the right position.

5, The scraper printing table also can be adjusted, froth or back.

6, Using SMC Cylinder, position seal adopt shaped two-way sealing structure, good performance.

7, High precision printing and repeating accuracy.

8, Programmable motor controls separation speed and distance among squeegee, stencil and substrate, to realize multi-method separation.

9, The machine also support glue printing, improve efficiency and save cost.

Core advantages

High cost performance: The price is lower than that of fully automatic equipment, suitable for small and medium batch production.

Flexibility: Different PCB models can be quickly switched (replace steel mesh and program).

Improved precision: More uniform than manual printing, and can handle BGA/QFN packages with a minimum pitch of 0.3mm.

Reduced human error: The pressure and speed of the mechanical scraper are controllable, and the consistency is better than manual operation.
