LED Display 4 Tanks Solder Paste Machine with FIFO Function for Efficient Aging and Warm Up

Brand Name:	HSTECH
Model Number:	HS-SP-4
MOQ:	1 set
Price:	Negotiable
Payment Terms:	T/T,Western Union
Supply Ability:	100 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

Auto Solder Paste Warm Up Machine

Other Name:

Solder Paste Check Right Machine/Aging Machine

Voltage:

AC110V/AC220V, 50/60Hz

Air Supply:

Needed

Size:

500*300*230mm

Weight:

16kg

Packaging Details:

Wooden Case

Supply Ability:

100 sets per month

Highlight:

LED Display Solder Paste Machine

FIFO Function Solder Paste Aging Machine

4 Tanks Solder Paste Warm Up Machine

Product Description

LED Display Solder Paste Check Right Machine / Aging Machine With FIFO Function

The LED Display Solder Paste Check Right Machine, also known as solder paste warm-up machine or aging machine, features an integrated timer system that precisely controls solder paste temperature warm-up duration. This automated solution eliminates manual time tracking when bringing solder paste from refrigerated storage to ambient temperature, ensuring optimal paste activity and printing quality while enhancing production planning and efficiency.

Key Features

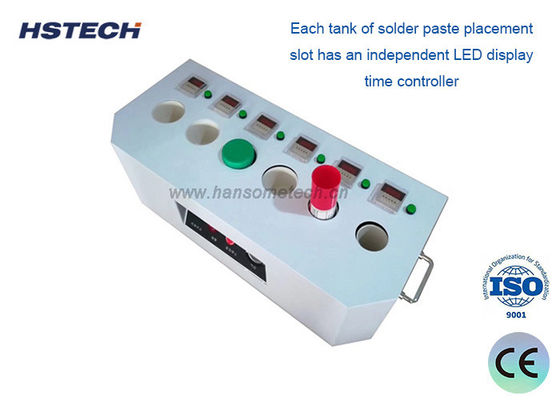

Independent LED display time controller for each solder paste placement slot with automatic sinking and release mechanisms
FIFO (First-In-First-Out) function for organized paste management
Automatic pop-up safety feature during power outages, even before reaching set time

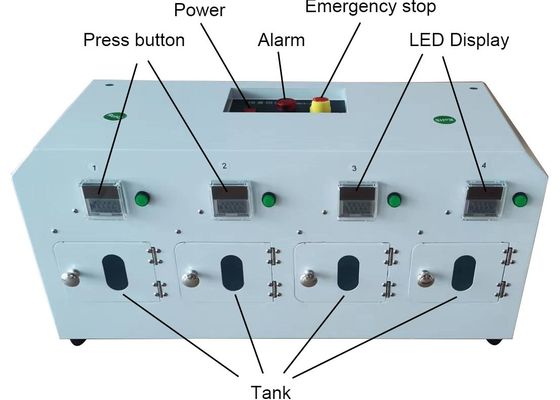

Integrated alarm system with emergency stop button for operational safety and control

Technical Specifications

Model	HS-SP-4
Control System	PLC
Assembly Components	Import Parts
Power Requirements	AC220V, 50Hz
Air Pressure	0.4Mpa
Placing Tank Capacity	4 Tanks
Machine Dimensions	500×300×230mm (W×D×H)
Gross Weight	16KG
