4 Axis Closed Loop Motor Automatic Screw Fastening Machine with 500300300*100mm Moving Range

Brand Name:	HSTECH
Model Number:	HS-SL5331
MOQ:	1 set
Price:	Negotiable
Payment Terms:	T/T,Western Union
Supply Ability:	100 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

Screw Fastening Machine

Feeding:

Suction Feeding

Screw Feeder:

Single, Or Customized Two

Screws Compatible:

M1-M6, Or Customized

Moving Range:

500*300*300*100mm

Material:

Aluminum

Packaging Details:

Wooden package

Supply Ability:

100 sets per month

Highlight:

4 Axis Screw Fastening Machine

Closed Loop Motor Screw Locking Machine

500300300*100mm Moving Range Automatic Screw Locking Machine

Product Description

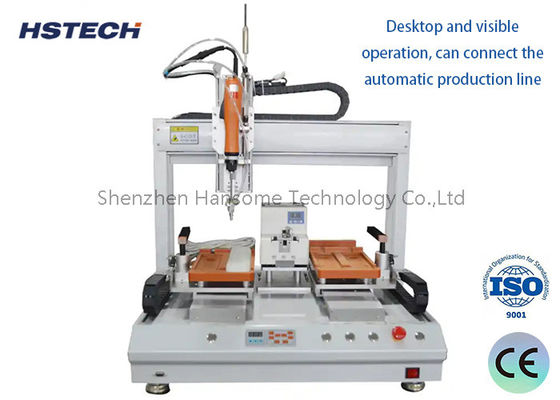

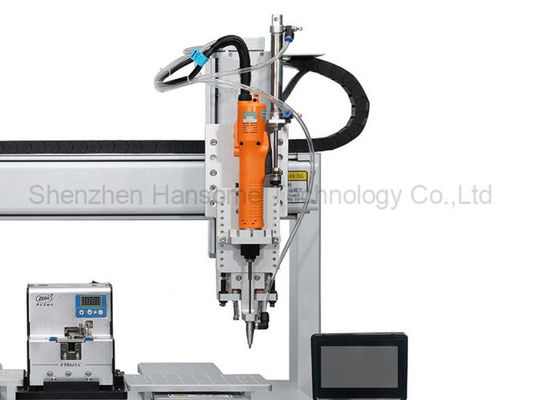

CAD CorelDraw 4 Axis Moving Closed Loop Automatic Screw Fastening Machine

This advanced screw fastening machine is designed for high-efficiency automated production across multiple industries including smartphones, PCs, electronic devices, and furniture manufacturing. Featuring a 4-axis system with double working stations, it combines precision screw-locking with automated feeding for optimal productivity.

Key Features

Versatile application across multiple industries with compact design
Seamless integration with automated production lines
Quick product changeover capability
Intelligent inspection system detects missed locks, unstable fastening, and loose screws

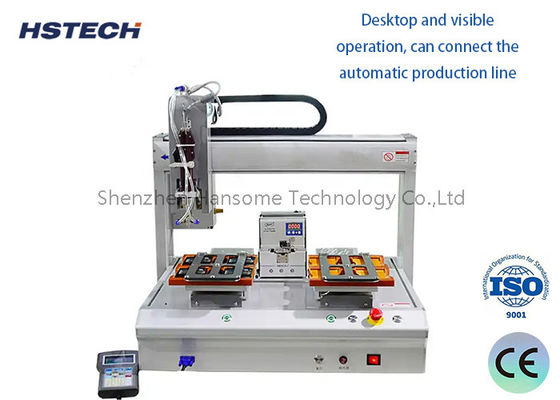

Double Y platform enables alternating loading by operators
4-axis operation with 500×300×300×100mm moving range
High automation level with easy operation and quick setup
Touch screen display and teach pendant for programmable operations
Single operator can manage multiple machines simultaneously
Leak detection system with continuous filling or alarm processing

Technical Specifications

Model	HS-SL5331
Product Name	4-Axis Automatic Screw Locking Machine
Moving Range (X/Y1/Y2/Z)	500×300×300×100mm
X/Y1/Y2 Axis Speed	Closed loop motor: 1-800mm/s
Z Axis Speed	Closed loop motor: 1-300mm/s
X/Y1/Y2 Axis Max Load	Closed loop motor: 5KG
Z Axis Max Load	Closed loop motor: 3KG
Power Supply	AC110V/220V, 50/60Hz
Repeat Accuracy	±0.02mm
Document Support	CAD CorelDraw
Suitable Screws	M1-M6
Machine Dimensions	746×585×800mm
Machine Weight	65kg

Premium Component Brands

Motor: Shinano
Guide: Hiwin
Photoelectric Switch: Omron
Power Supply: Meanwell
