Air Feeder Handhold Screw Lock Machine M1-M5 WITH Touch Screen

Brand Name:	HSTECH
Model Number:	HS-505
MOQ:	1 set
Price:	Negotiable
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	100 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

Handhold Screw Lock Machine

Application:

Electric Screwdriver For Electronic Assembly Line

Apply Screws Size:

M1-M5

Apply Screw Head:

All Type

Screw Capacity:

M2*6/5000PCS

Screw Feeding Speed:

Screw Feeding Speed

Packaging Details:

Wooden package

Supply Ability:

100 sets per month

Product Description

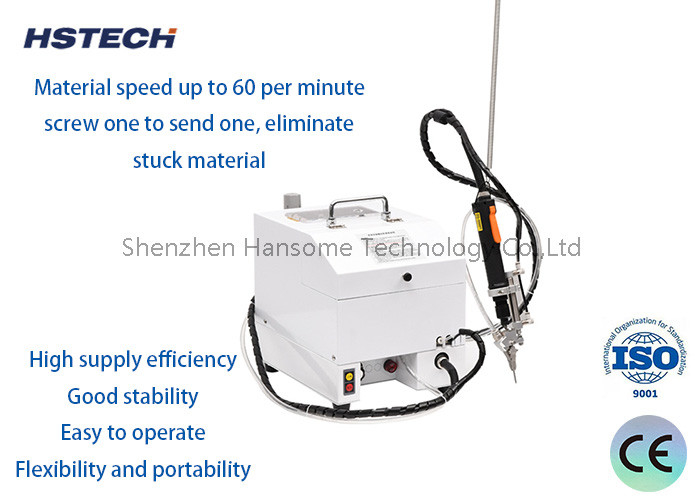

Air Feeder Handhold Screw Lock Machine M1-M5 WITH Touch Screen

Application:

Applicable to all kinds of electronic products such as toys, mobile phones, telephones, calculators, navigation, dash cam, audio, video and other products screw tightening application.

Features:

1. High supply efficiency:Material speed up to 60 per minute, suitable for mass production,

save labor, save cost.

2. Good stability: screw one to send one, eliminate stuck material,Even if bad lead to material jam,

non - professional personnel can quickly solve the problem.

3. Only one hand operation is needed, and the screw lock and payment can be completed with a

gentle press, saving the time of taking and putting screws;

4. Easy to operate -- without professional training, novice can be skilled in operation, long-term operation will not be tired;

5. Flexibility and portability -- air feeder can be placed in any position where screws are needed.

Both on and off stage.

6.Touch screen: Direct contact screen control Settings, convenient and fast.

Specfication:

Model	HS-505
Screw capacity:	M3*10/3000PCS
Efficiency:	50-80pcs/min
Screw feeding speed:	0.5s/pcs (standard screw)
Feeding type:	Blowing
Feeding length:	1- 4Meter
Power supply:	AC220V 50HZ
Power:	40W
Working pressure:	0.4Mpa-0.6Mpa
Weight:	App 11KG
Dimension:	370220280mm
Noise	Lower 65
