PCL And Touch Screen NG/OK Unloader Board From AOI Each Hold 2 Magazine

Brand Name:	HSTECH
Model Number:	HS-N100L
MOQ:	1set
Price:	Negotiable
Payment Terms:	D/P, T/T, Western Union, MoneyGram
Supply Ability:	200 sets per month

Detail Information

Place of Origin:

China

Certification:

Product Name:

NG/OK Unloader

Color:

White

Control:

PCL And Touch Screen

Magazine:

Separately, Each Hold 2 Magazine

Warrany:

1 Year

Display:

3 Color

Communication:

SMEMA Signal

Packaging Details:

Wooden package

Supply Ability:

200 sets per month

Product Description

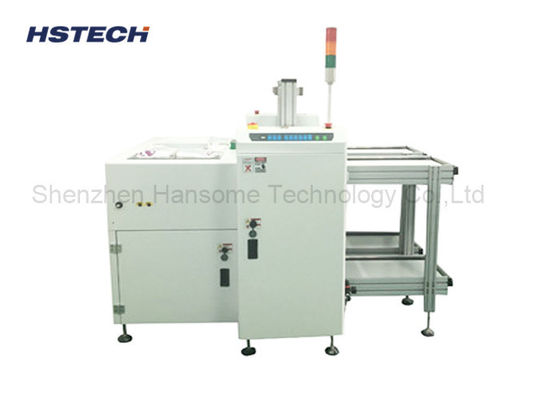

PCL And Touch Screen NG/OK Unloader Board From AOI Each Hold 2 Magazine

Intorduction:

This unit is used after the AOI, by recieving the upstream AOI signal, automatic collect the NG/OK boards separately to relevant magazine.

Features:

1, PLC programing control.

2, Using friendly ‘soft touch’ LED membrane control panel

3, Selectable pitch setting.

4, Toggle level clamps provided for magazine alignment.

5, Pneumatic pusher’s pressure regulated.

6, High throughput with short magazine change-over time.

7, Collect NG/OK board from AOI, automatic store the NG/OK boards.

8, Standard SMEMA communication interface.

Specification:

Model:	HS-N100M	HS-N100L
Voltage:	AC100V/220V, 50/60Hz
Size:	M	L
PCB Size(mm):	(50x50)~(330x250)	(50x50)~(450x330)
Magazine racks size(mm):	355320560	460400560
Magazine Qty	Upper conveyor,1 pc; bottom conveyor 1pc
Air supply:	0.4~0.6Mpa,20L/Min max
PCB loading time:	6 seconds, or customized
Transport height:	900±20(mm)
Transport Direction:	L-R or R-L (optional)
PCB thickness:	Min 0.6mm
Up/down pitches:	1-4(10mm step)
Communication	SMEMA signal
Machine Dimension(mm):	155015501250	185017801250
Gross Weight:	Approx 220kg	Approx 320kg
