Easy operate 6W AC Motor SMD Chip Counter with 7-13 Inch Plastic Reel

Brand Name:	HSTECH
Model Number:	YH-890
MOQ:	1 set
Price:	Negotiable
Payment Terms:	T/T,Western Union,MoneyGram
Supply Ability:	100 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,RoHS

Product Name:

SMD Chip Counter

Motor Brand:

Panasonic

Motor Power:

Plastic Reel Size:

7-13 Inch

Missing Detection:

Optional

Package:

Carton Box With Foam Protect

Weight:

8.5KG

Packing Dimension:

490*320*245mm

Packaging Details:

Carton package

Supply Ability:

100 sets per month

Highlight:

Easy operate SMD Chip Counter

AC Motor SMD Chip Counter

Product Description

Easy operate 6W AC Motor SMD Chip Counter with 7-13 Inch

Introduction
SMD Chip Counter is a device or system used to automatically count the number of surface mount components (SMD), which is widely used in the electronics manufacturing industry (such as PCB mounting, component packaging, inventory management, etc.)

Specification

Model:		YH-890
Voltage:		AC220, 50/60Hz
Power Supply:		15W
Motor Brand:		Panosonic 6W AC motor
Counting Range:		“-100000~100000"
Pitch Size:		2,4,8,12,16,24,32,44,56,72,88 m
Plastic reel size:		7-13 inch
Universal Products		Suitable for all tape components
Error		0
Product Size:		450270180mm
Package size		470280190mm
Gross Weight:		9.5kg

Features

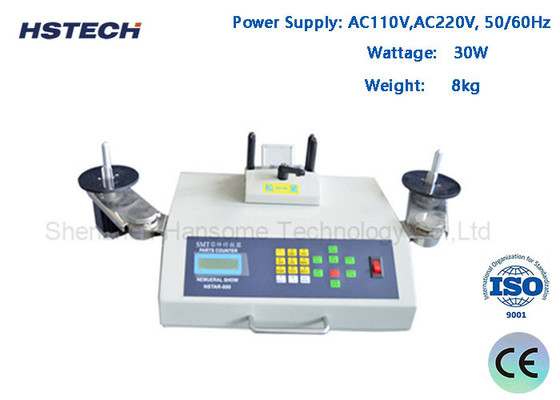

1. AC100/220V power supply option.
2. Can connect the barcode Scanner and label printer,
3. Easy operate,designed to prevent tape dropping,minimizing risk of damage to tapes.
4. Count forward and reverse ,double-check feature ensures accuracy,built-in memory allows you to preset count quantity.
5. The counter use drafting LCD screen. Small size, light weight, easy to carry

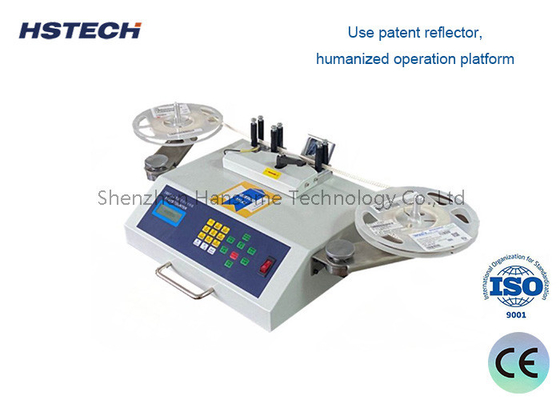

6. Use patent reflector,humanized operation platform.
7. Optical fiber sensor detect leak ,motor will stop working when detected leak.

Common application scenarios

(1) SMT patch production line
Count the number of remaining components in the feeder to avoid downtime caused by lack of materials.

Check whether the tape and reel are complete to prevent missing or wrong mounting.

(2) Component packaging and sorting
During incoming material inspection (IQC), quickly check whether the number of SMDs provided by the supplier is accurate.

Used for binning or repackaging (such as packaging from large rolls of tape into small rolls).

(3) Inventory management
Automatically count SMD inventory to improve warehouse management efficiency.

Easy operate 6W AC Motor SMD Chip Counter with 7-13 Inch Plastic Reel 0

Easy operate 6W AC Motor SMD Chip Counter with 7-13 Inch Plastic Reel 1

Easy operate 6W AC Motor SMD Chip Counter with 7-13 Inch Plastic Reel 2

Easy operate 6W AC Motor SMD Chip Counter with 7-13 Inch Plastic Reel 3
