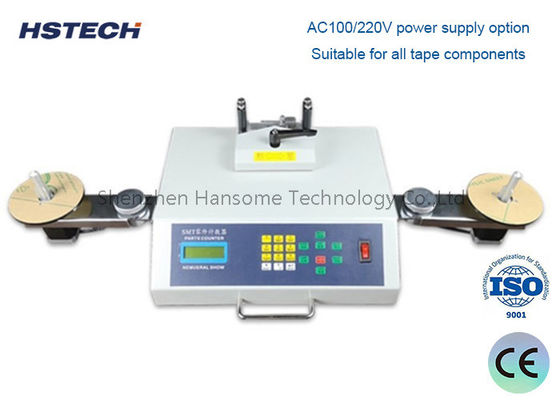

19 Seconds to 2 Min SMD Components Counter with Leak Detection Function and Stainless Steel Structure

Brand Name:	HSTECH
Model Number:	YS-802E
MOQ:	1 set
Price:	Negotiable
Payment Terms:	T/T,Western Union
Supply Ability:	100 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

SMD Components Counter

Other Name:

SMD Chip Counter

Power Supply:

AC110V,AC220V, 50/60Hz

Control:

LED Button

Display:

Digital LED

Weight:

10kg

Packing:

Carton

Warranty:

6 Months

Packaging Details:

Carton package

Supply Ability:

100 sets per month

Highlight:

Leak Detection Function SMD Components Counter

19 Seconds to 2 Min Counting Time SMD Chip Counter

Stainless Steel Structure Electronic Component Reel Counter

Product Description

19 Seconds To 2 Min SMD Components Counter With Leak Detection Function

Advanced SMD components counter featuring leak detection and adjustable counting speeds from 19 seconds to 2 minutes for efficient electronic component management.

Key Features

LED display with freely settable counting quantity
Stainless steel machine structure for durability
Leak detection function stops counter and alerts when components are missing
Simple operation with preset functions for positive and negative counting
Compatible with scanning gun and barcode printer for easy management
Adjustable counting speed improves efficiency for different tape sizes
Drafting LCD screen with compact, lightweight, portable design
Patented reflector with humanized operation platform
Complete factory component control to prevent errors
Optimized SMT parts management to avoid inventory and capital accumulation

Technical Specifications

Model	YS-802E
Power Supply	AC110V, AC220V, 50/60Hz
Wattage	30W
Counting Time	19 seconds to 2 min
Counting Range	-59999~59999
Pitch Size	2,4,8,9,10,12,16,24,32mm
Tape Width	8,12,16,24,32,44,56,72,88 mm
Plastic Reel Size	7-13 inch
Application	Suitable for all components
Product Size	450270180mm
Package Size	460280190mm
Gross Weight	10kg
