| Place of Origin: | China |
| Brand Name: | HSTECH |
| Certification: | CE |
| Model Number: | YS-802E |
| Minimum Order Quantity: | 1 sets |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton package |
| Delivery Time: | 3-5 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 500 sets per month |
| Product Name: | SMD Components Counter | Other Name: | SMD Chip Counter |
|---|---|---|---|
| Power Supply: | AC110V,AC220V, 50/60Hz | Control: | LED Button |
| Display: | Digital LED | Weight: | 10kg |
| Packing: | Carton | Warranty: | 6 Months |

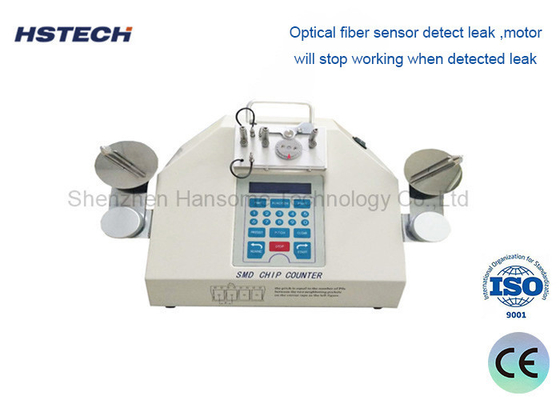

SMD Component Counter with Leak Detection, Speed Control and Button Control
Features
1. Stainless steel machine body.
2. Leak detection function, when tracking missing components, the counter will stop and reminder you.
3. The operation is simple, the positive and negative can be counted, and the function is really preset.
4. The quantity of preset parts can be used for the design of SMT belt type parts.

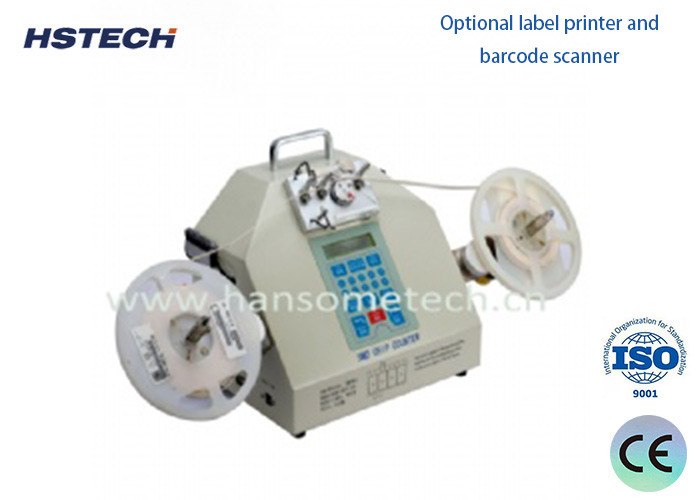

5. It can be equipped with scanning gun and bar code printer for easy management.
6. Counting speed can be ajustable,improve the efficiency,meet the different size tape.
7. The counter use drafting LCD screen. Small size, light weight, easy to carry
8 .Use patent reflector,humanized operation platform.
9. Fully control the components in the factory, avoid mistakes.
10. Fully control the number of SMT parts in the factory, and avoid the inventory and capital accumulation. Small size, light weight, easy to carry.
Specification
| Model | YS-E802 |
| Power supply | AC110V,AC220V, 50/60Hz |
| Wattage | 30W |
| Counting time | 19 seconds to 2 min |
| Counting range | -59999~59999 |
| Pitch size | 2,4,8,9,10,12,16,24,32mm |
| Tape width | 8,12,16,24,32,44,56,72,88 m |
| Plastic reel size | 7-13 inch |
| Application | Suitable for all components |
| Product size | 450*270*180mm |
| Package size | 460*280*190mm |
| Gross weight | 10kg |
