AC220V 60HZ Fully Automatic Timed Solder Paste Rewarming Machine with Multiple Slots for Efficient Thawing

Brand Name:	HSTECH
MOQ:	1 set
Price:	Negotiable
Payment Terms:	T/T,Western Union
Supply Ability:	100 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Packaging Details:

Carton package

Supply Ability:

100 sets per month

Highlight:

Fully Automatic Solder Paste Rewarming Machine

Timed Solder Paste Thawing Machine

Multiple Slots Solder Paste Reheating Machine

Product Description

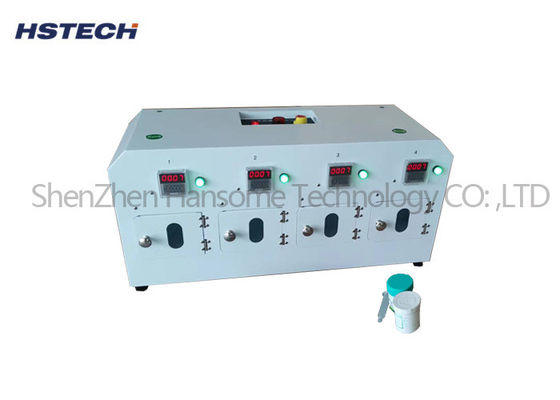

AC220V 60HZ Fully Automatic Timed Solder Paste Rewarming Machine

This fully automatic solder paste rewarming machine features intelligent multi-slot operation, allowing simultaneous reheating of multiple solder paste containers while maintaining optimal paste activity through precise temperature control.

Key Functions

Multi-slot intelligent reheating system for simultaneous processing of multiple solder paste containers
Constructed with durable steel plate and baked-painted finish for professional appearance
Utilizes imported electrical components for reliable performance
Independent time control per slot with automatic locking mechanism during reheating cycles
Each slot accommodates 500g solder paste containers with flexible workstation configurations

Technical Specifications

Machine Name	Fully Automatic Solder Paste Reheating Machine
Operating Mode	Voltage Mode
Operating Voltage	AC220V 60HZ
Product Dimensions	Four-slot model: L670 × W220 × H335mm Tank size: 150 × 100 × 110mm
Net Weight	16kg
Material	Steel Plate Spray Paint
Compatibility	Supports 250G/500G solder paste and needle-type red glue (total length less than 120mm)

Performance Features

Precise Temperature Control: PID-controlled system maintains temperature within ±1-2°C for uniform thawing
Efficient Processing: Reduces natural thawing time from 4-8 hours to 2-4 hours
Programmable Operation: Stores multiple thawing/mixing programs with timed startup capability
Safety Systems: Integrated door locks, overheating protection, and abnormal alarm functions
User Interface: Touchscreen operation with real-time status display and data logging

Configuration Options

Available in 4, 5, 6, 8, 10, 12, 14, and up to 30 workstation configurations. Custom non-standard configurations available upon request.

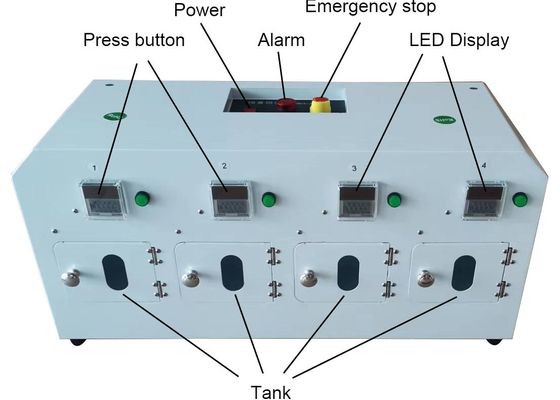

Product Images
