6, 8 And 16 Pitch 0~20Kpa Disposable Valve for SMT/FPC/PCB,Assembly

6, 8 And 16 Pitch 0~20Kpa Disposable Valve for SMT/FPC/PCB,Assembly

Machine Introduction:

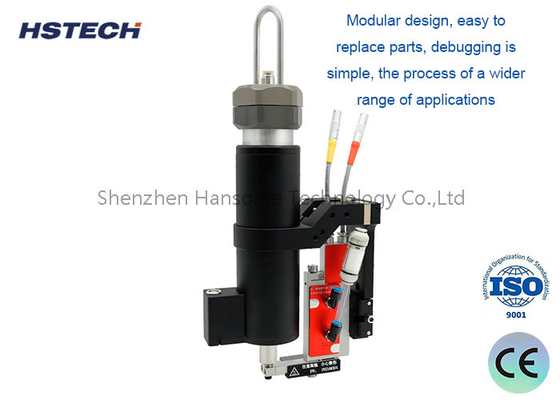

(Solder Paste) Screw Valve is our self-developed, patented Disposable Material Path (DMP) dispensing valve.
1.Includes disposable feed screws for easy maintenance, and the disposable feed channel allows the valve to maintain its dispensing accuracy for a longer period of time.
2. The DMP valve's more chain door can be opened easily, easy to remove the disposable feed channel, even in the production line, can be replaced in a very difficult time, do not need to clean or refurbish the valve, does not affect normal operation.
3. There is a heating function, in the use of higher viscosity glue, heating will make the glue flow better, more stable out of the glue.

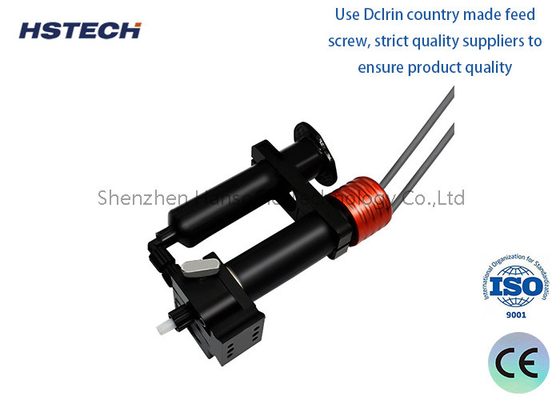

4. Use Dclrin country made feed screw, strict quality suppliers to ensure product quality.
5. Relative to ordinary valves, reducing the accumulation of liquid in the valve body to reduce the wear and tear of the motor, so that the service life of the valve is greatly increased.
6. HS-2000S series valves are available in three pitch sizes: 6, 8 and 16 pitch. For details, please refer to the example table on the right.

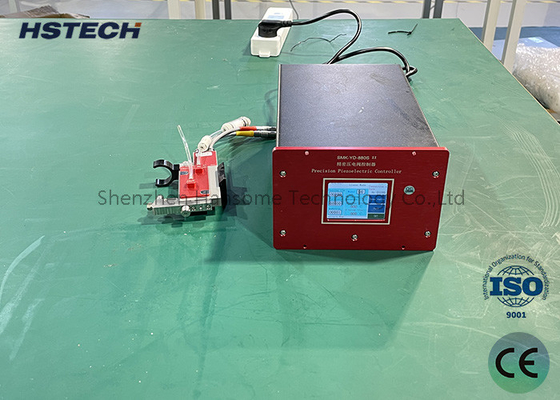

7. Equipped with a special controller, you can freely adjust the cycle of punching or line drawing mode, as well as the suction time.

Specification:

Features:

1. No Motor Reversal Function Required Disposable Fluid Paths.

2. No cleaning required UV-compatible Delrin fluid paths.

3. Rotating tip collar option for curved/oval tips.

Typical Applications:

1. Placement of solder paste beads in solar cell lugs.

2. Dispensing small amounts of SMA deposits in PCBA production.

3. Dispensing structural adhesive on flexible PCBAs.

Industry Applications:

Solder paste, red glue, silicone, high viscosity, high flow fluids, fillers.
