ESD Flat Belt LED Button Control PCB Handling Equipment smt Conveyor For Customized Requirements

Brand Name:	HSTECH
Model Number:	HS-C600
MOQ:	1 set
Price:	Negotiable
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	100 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

SMT Conveyor

Other Name:

Link Conveyor

Transporting Length:

600 MM

Transport Belt:

ESD Flat Belt

Belt Thickness:

1.0 Mm

Voltage:

1P AC 110V/220V 50/60HZ

Warranty:

1 Year

Packing:

Wrap, Wooden Box

Packaging Details:

Wooden package

Supply Ability:

100 sets per month

Product Description

ESD Flat Belt LED Button Control PCB Handling Equipment Smt Conveyor For Customized Requirements

introduce:

The connection station is used for connection between SMT production lines, and can also be used for PCB buffering, inspection, testing or manual insertion of electronic components.

The docking station generally includes: a frame, two conveyor belts that rotate in parallel on the frame, and circuit boards are placed on the two conveyor belts for transportation. The existing conveyor belts are generally fixed in position on the frame, so that the two The width of the circuit boards conveyed on the conveyor belt is limited, which is not conducive to conveying circuit boards of different sizes, making the applicability of the docking station low.

Features:

1. Thickness stable stainless steel machine body.

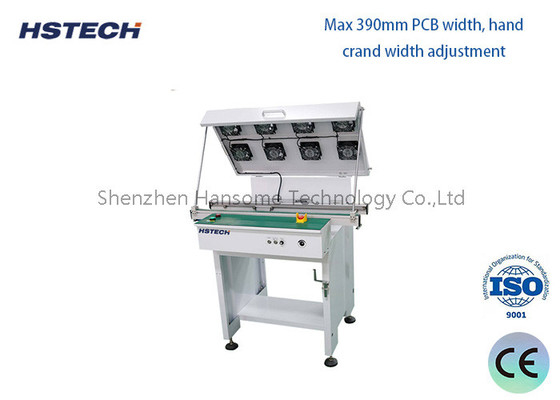

2. Max 390mm PCB width, hand crand width adjustment.

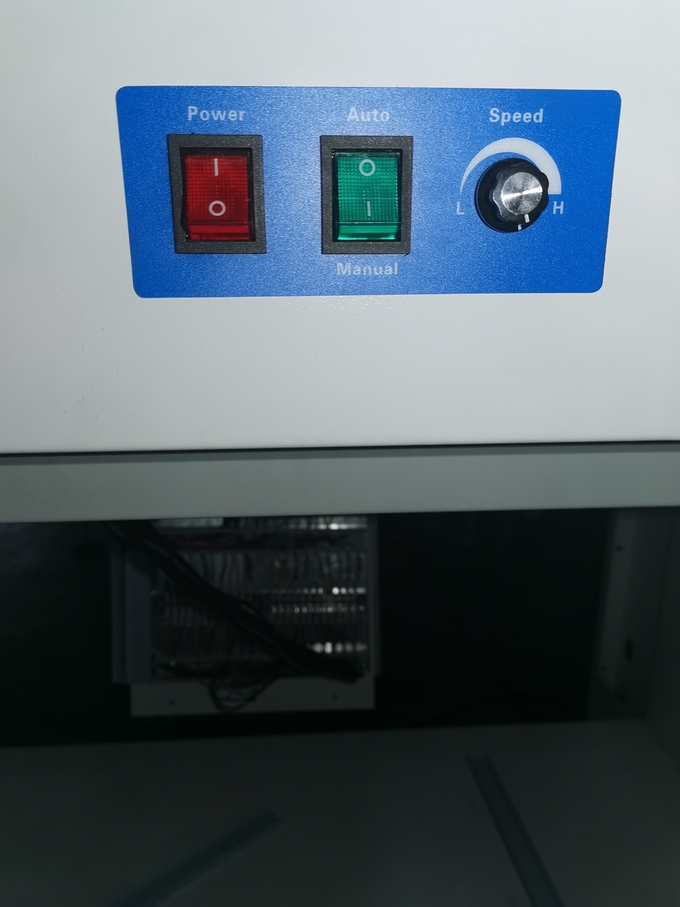

3. Transporting speed adjustment by Knob.

4. ESD green color work table.

5. Aluminum alloy transporting rail.

6. LED button control, speed adjustment motor.

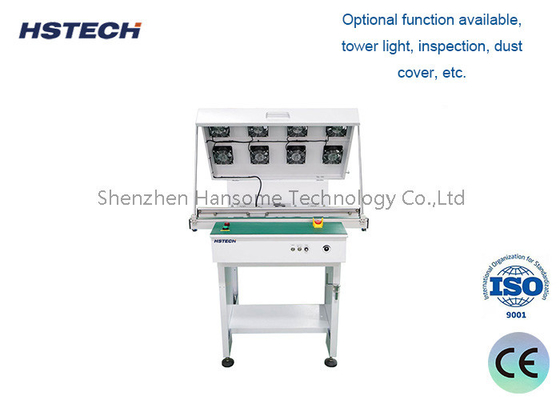

7. Optional function available, tower light, inspection, dust cover, etc.

8. Customized requirement available.

9. Length available, 600mm, 1000mm, 1500mm, or optional.

10. SMEMA signal for inline connection.

Specification:

Model		HS-C600/HS-C600S
Power Supply		AC220V or AC110V 50/60Hz
PCB Size		5050~500390mm
Width adjustment		Hand crank
PCB Direction		Left to right or right to left
Transmission Height		900 ± 20 mm
Transmission Speed		0.5-20 meters per minute adjustable
Track fixed side		front side fixed( or back side fixed for option)
Machine Length		0.5M/0.6M/0.8M/1M/1.5M
Options		Light,Fan,Magnnifying,Cover,Inspection
Communication signal		SMEMA

Things to note:

1. Ensure that there are no foreign objects in the transportation part, belts, pulleys and transportation guide rails to ensure smooth and smooth transportation.

2. Refuel the transmission part, rack or width-adjusting screw regularly. Refueling must be performed in the stopped state.

3. In case of power outage, turn off the main power switch of the equipment immediately.

Product Details:

Stable Stainless Steel PCB Handling Conveyor for 50*50~500*390mm 2

合金运输轨道 LED 按钮控制链接 SMT 输送机带 ESD 平带 0

合金运输轨道 LED 按钮控制链接 SMT 输送机带 ESD 平带 1

Packing:

正面操作多功能SMT生产线自动NG PCB剔除输送机7

正面操作多功能SMT生产线自动NG PCB剔除输送机8
