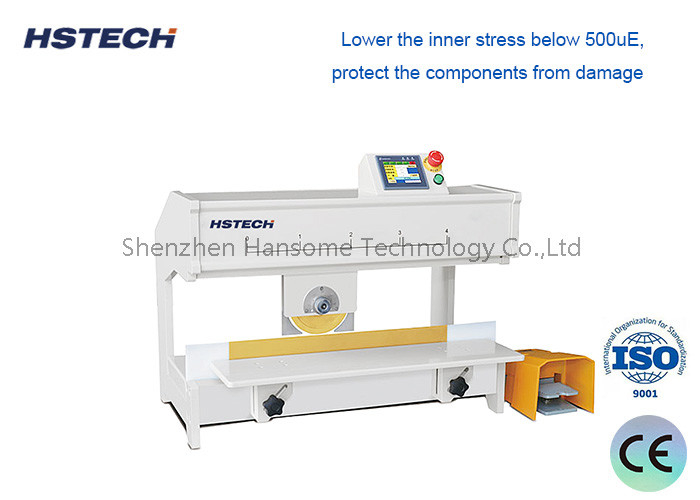

Touch Screen V-cut PCB Separator PCB Depanedling Equipment with Counting Function

Brand Name:	HSTECH
Model Number:	HS-VM-400
MOQ:	1 set
Price:	Negotiable
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	100 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

V-cut PCB Separator

Warranty:

1 Year

Control:

Touch Screen

Material:

Aluminum Alloy

Signal:

SMEMA

Application:

Electronic Assembly

Power Supply:

AC220V

Type:

Automatic

Packaging Details:

Wooden package

Supply Ability:

100 sets per month

Product Description

Touch Screen V-cut PCB Separator PCB Depanedling Equipment with Counting Function

Introduce:

The PCB splitter is a kind of splitting equipment for the PCB board. It is an electronic device necessary for electronic manufacturers. Because the PCB section machine is cut through the motion of the blade, it can be cut by PCB. The stress generated during the control can prevent damage and displacement of components. It can have greater quality guarantee than the division of artificial and cutting clams.
The three major design requirements and uses of the PCB splitter

I. The PCB splitter is to separate the PCB board together. It is a necessary device in the PCB processing plant.

Second, the design of the design of the PCB splitter machine
(1) Single -sided mixing, that is, putting patch elements or inserted components in PCB single -sided cloth.
(2) Patch on both sides, PCB single -sided or two -sided layout components.
(3) Double -sided mixing, PCB fabric putting stickers and inserted components, and B -side cloth placing patch components suitable for wave welding.

Features:

1, It can cut rapidly regardless of the quantity, very economic.

2, Cutting distance setted by touch screen to align V slot in PCB,which makes the cutting stroke accurate without error.

3, Panel splitting process finished by using both moving blade and stationary blade,which can reduce stress and avoide fracturing of welding spot.

4, PCB Stays still during panel splitting,blade slip forward and backward, ensure the quality.

5, Compare with manual operation,it can reduce stress that will damage welding spot on PCB,improve working efficiency and product quality.

6, The cutting distance can be set freely,range from 1 to 100m,which can better fulfill customer's demands and improve the working efficiency.

7, The starting cutting position can be set freely, which can ensure the long lifespan.

8, This machine equipped with counting function, can facilitates the data after the production.

Specfication:

Model	VM-400	VM-600
Voltage	110V/220V,50/60Hz	110V/220V,50/60Hz
Max cutting length	400mm	600mm
PCB thickness	0.8~3mm	0.8~3mm
Separation speed	600mm/sec	600mm/sec
Separation type	Circur and linear blade	Cirlular and linear blade
Components height	0~70mm	0~70mm
working temperature	30~55℃	30~55℃
Machine dimension	420520680mm	6207201680mm
Weight	50kg	60kg

Packaging:

Cutting Distance Setted Compare With Manual Operation V-Cut PCB Separator 1

Cutting Distance Setted Compare With Manual Operation V-Cut PCB Separator 2

正面操作多功能SMT生产线自动NG PCB剔除输送机8
