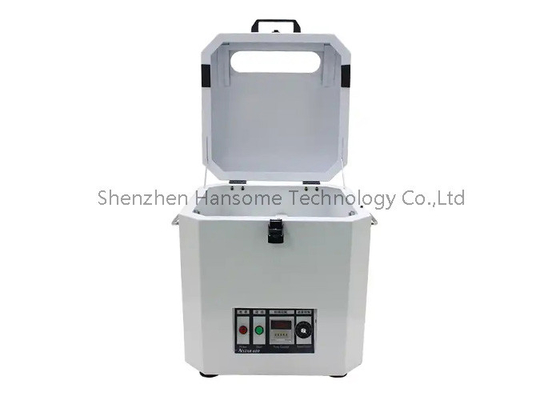

Automatic Solder Paste Mixer with High-Speed Rotation for SMT Manufacturing Efficiency

Brand Name:	HSTECH
Model Number:	NS-600
MOQ:	1 set
Price:	Negotiable
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	500 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

Automatic Solder Paste Mixer

Power Supply:

AC110V/220V, 50/60Hz

Speed:

Adjustment

Air Supply:

Size:

410*410*490mm(W*D*H)

Weight:

45kg

Packaging Details:

Wooden package

Supply Ability:

500 sets per month

Product Description

SMT Line Use Digital Display Solder Paste Mixer with High-Speed Rotation

Introduction

The revolution of the centrifugal force generated by automatic paste mixer,the force produced by the rotation of the rotating shaft and the angle of 45 degrees.The tank is located in the upper end of the paste continuous downward movement, at the bottom of the pipe to the tank above the paste around the movement, the formation of a tornado funnel type stirring action, make a smooth paste mixing and softening, deaeration reach the proper viscosity after mixing paste has good wettability, diffusion uniformity, excellent printing effect, to achieve the best performance of reflow soldering.

Features

1, The solder cream jars are placed in 45 angle, and run around its axis line, so the solder cream will not ahere to the jar cover.

2. Compatible with most brand 500g solder paster,can mixing two tins at one time, save time and improve efficiency.

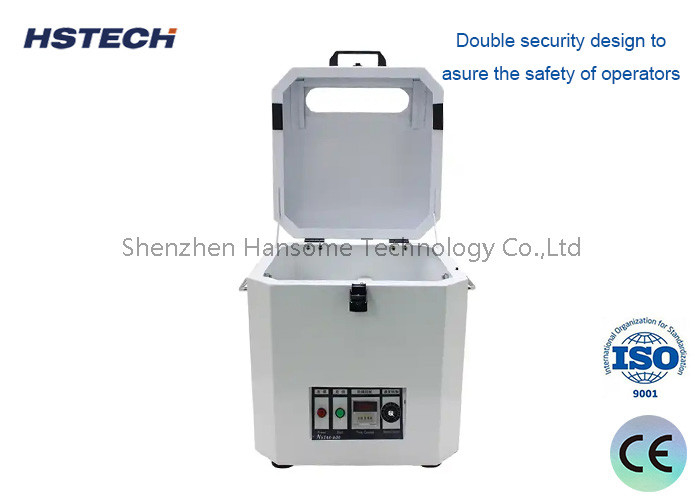

3. Double security design to asure the safety of operators.
4. The air bubbles can be eliminated while the solder paste is being mixed.

5, The contorl of the solder paste mixing is considered fully with using special control circuit.

6, The rotating speed has proved by practice, so the impact against the tin power and the effect to solder paste quality in the rising temperature are avioded.

7. Without water, does not destroy the shape of tin.

Specification

Model:		NSTAR-600
Wattage:		60W
Power:		AC220V, 50Hz
Roating speed:		Primary rotating:1400RPM;Sencond rotating:400RPM
Working Capacity:		500g*2jar;
Tin Pot's Size:		M diameterΦ60-Φ67standard one S diameterΦ53-Φ60(for choose, please contact us ) L diameterΦ67-Φ74(for choose, please contact us)
Time Setting:		0.1～9.9mins, adjust0.1min per time; 10～30mins, adjust1.0min per time
Display & Caution:		LED digital display,light blink and buzzer warning
Machine Demension:		410410490mm(WDH)
Packing Demension:		420420500mm(WDH)
Net/Gross Weight:		40KG/45KG
