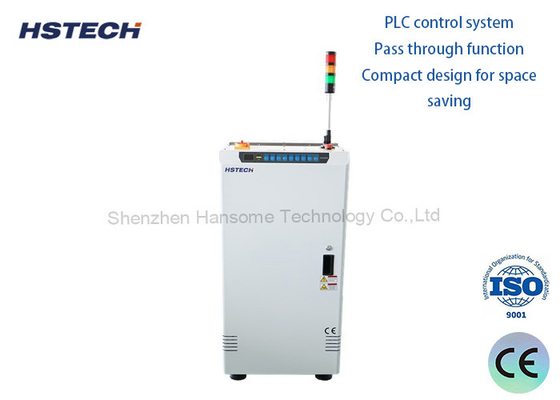

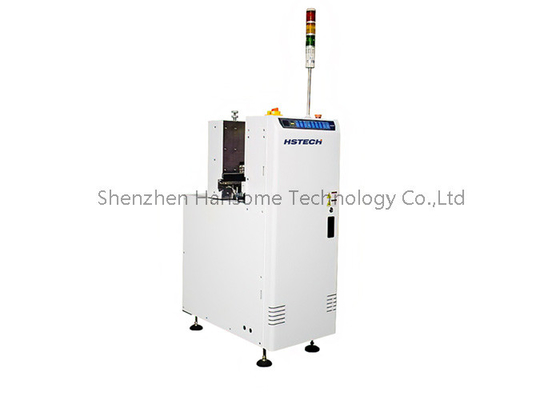

Fast Feeding Panasonic PLC PCB Handling EquipmentBare Board Destacker For SMT Assembly Line PCB Loading

Fast Feeding Panasonic PLC PCB Handling EquipmentBare Board Destacker For SMT Assembly Line PCB Loading

Introduce

A Bare Board Destacker is a device used in automated electronics manufacturing processes to remove and separate bare boards (circuit boards without assembled components) one by one from stacks.This machine is used to loading the bare PCBs to the start of SMT line.

Here is a general introduction to Bare Board Destacker:

Function: The main function of the Bare Board Destacker is to automatically remove one bare board at a time from the bare board stack and transfer it to the next process, such as printing, placement or inspection. It is used to separate and supply bare boards to subsequent processes to support automated processes in electronics manufacturing.

Stacked Board Handling: The Bare Board Destacker is typically capable of handling stacked bare boards, which are typically stored in a feeder area in parallel or vertical stacks. The device automatically identifies and separates each bare board in the stack.

Feeding and conveying: The equipment usually has a feeding system that automatically extracts the bare boards from the stacking area and conveys them to the next process via a conveyor belt, conveyor, or other transfer mechanism.

Automated operation: Bare Board Destacker is usually equipped with an automated control system that can operate automatically through sensors, motors and other equipment. It enables fast and accurate processing of bare boards on demand.

Safety protection: In order to ensure the safety of operators and avoid damage to the bare board, Bare Board Destacker is usually equipped with safety devices, such as protective covers, emergency stop buttons and sensors.

System integration: Bare Board Destacker can be integrated with other electronic manufacturing equipment (such as printing machines, placement machines, etc.) to form a complete automated production line.

Specification

Features

1, Panasonic PLC control.

2, Touch Screen Control, Step motor.

3, Full sheet metal structure,cooling soldering, computer white surface.

4, Uninterrupted loading, available for By-pass function.

5, Fast PCB feeding time, around 6 sec.

6, Smooth and parallel width adjustment(hand lead screw control).

7, Three color tower light display.

8, Whole machine in time error detection.

9, SMEMA communication interface,standard 4 pin wire.
