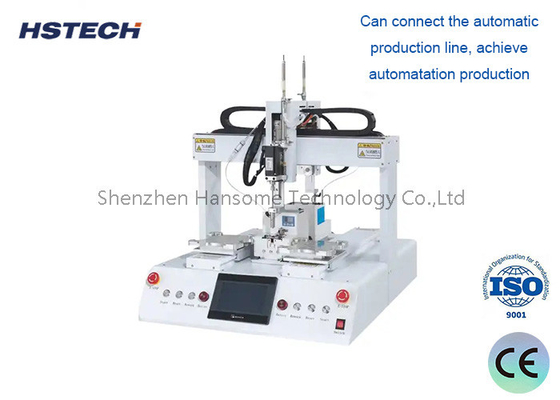

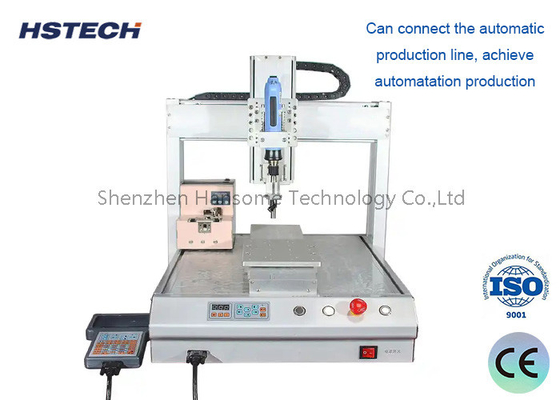

Signal Or Double Working Station Screw Locking Machine 4Axis Automatic With The Function Of Leak Detection

Automatic Screw Locking Machine is a device used to automatically tighten screws. It realizes automatic feeding, identification, positioning and locking of screws through mechanical devices and control systems, and is widely used in electronic manufacturing, machinery manufacturing and assembly industries.

Working principle: Automatic Screw Locking Machine uses mechanical devices and control systems to automatically complete the screw feeding, identification, positioning and locking processes. It is usually equipped with screw feeders, screw identification systems, positioning devices and locking devices. According to the preset parameters and procedures, the equipment can accurately remove the screws and lock them to the designated position.

Automated process: The automated process of Automatic Screw Locking Machine usually includes the following steps:

• Screw feeding: A screw feeder supplies screws to the equipment, usually through a vibrating plate or feed pipe.
• Screw recognition: The recognition system is used to detect the presence and orientation of screws to ensure correct removal and placement.
• Positioning: A positioning device positions a workpiece (usually an electronic product or mechanical component) into the appropriate position for screw tightening.
• Locking: The locking device automatically locks the screws to the workpiece according to the preset torque and angle parameters.
• Error judgment and feedback: Equipment is usually equipped with a detection and feedback mechanism to detect the correctness and locking results of screws for error judgment and correction.

Scope of application: Automatic Screw Locking Machine is widely used in fields that require a large number of screws to be fastened, such as electronic manufacturing, mobile phone assembly, auto parts, home appliance manufacturing, etc. It can handle various types and sizes of screws and is suitable for workpieces of different shapes and sizes.

Advantages: Automatic Screw Locking Machine has some advantages. First, it can greatly improve the efficiency and consistency of fastening operations and reduce the need for manual operations. Second, automated processes reduce quality problems caused by human error and fatigue. In addition, equipment usually has adjustable parameters and programs to accommodate different specifications and requirements for screw locking.

• Suction feeding, single screw feeder, also can customized to double feeder.
• Using high quality electric screwdriver for Z axis moving.
• 4 Axis operation, moving range 500*300*300*100mm.
• Double working station, the operator can loading the product one by one, great improve the production efficiency and reduce labor cost.
• Accurate torsion, convenient adjustment, guaranteed the production quality.
• Easy adaptability for M1-M6, just by changing screw guider(Customization available).
• With the function of leak detection, if a screw did not fill in place it can fill continually or alarm.
• The machine can store hundreds of processing files, each file can support 1000 screw bits, you can call it out when you use it.

• Motor: Shinano
• Guide: Hiwin
• Photoelectric switch: Omron
• Power supply: Meanwell
