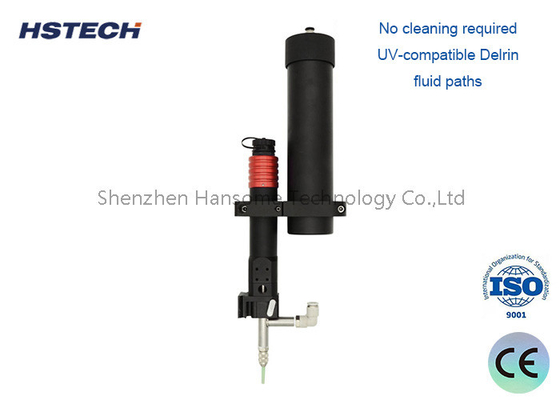

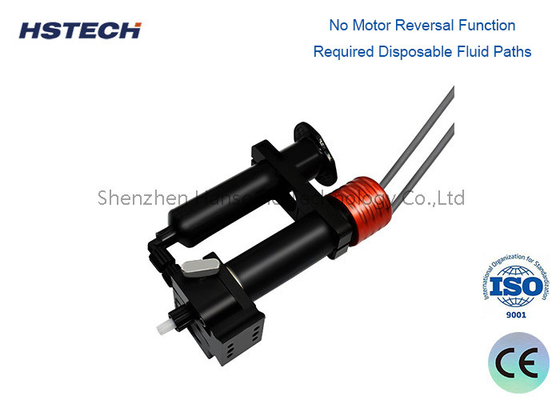

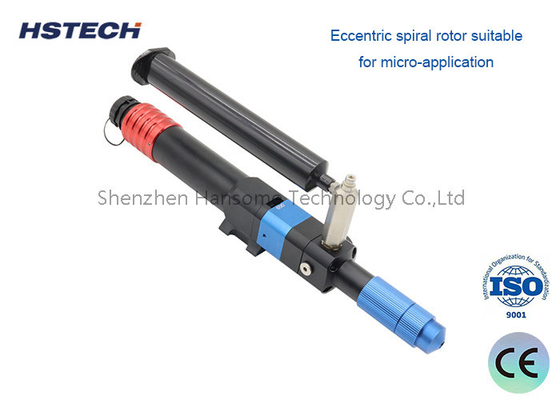

High Precision Rotating Tip Collar Option Solder Paste Screw Valve Liquid Dispensing Control Valve

High Precision Rotating Tip Collar Option Solder Paste Screw Valve Liquid Dispensing Control Valve

Introduce

Dispensing Valve is an important automation equipment widely used in the electronics manufacturing industry. It is used to precisely control the dispensing or coating process of various liquid materials.

The following is an introduction to the specific situation of Dispensing Valve:

product description:
Dispensing Valve is a professional liquid dispensing control valve equipment.
It can accurately apply various liquid materials (such as glue, ink, solder paste, etc.) to designated locations.

Main functions and features:
Precise control: Through precise electromagnetic or pneumatic control systems, micro-amount, high-speed dispensing can be achieved.
Strong flexibility: applicable to liquid materials of different viscosities and flow rates, with wide compatibility.
Automation: Integrated with automated production lines to achieve full automation of the dispensing process.
High repeatability: The volume and position of each dispensing are highly consistent, ensuring stable product quality.
Good durability: Using industrial-grade parts and materials, it has a long service life.
Easy to maintain: simple structure, convenient daily maintenance and debugging operations.

working principle:
The liquid material is transported from the barrel to the valve body of the Dispensing Valve.
The electromagnetic or pneumatic drive system accurately controls the opening and closing time and strength of the valve to achieve the required dispensing amount and shape.
After dispensing is completed, the valve is closed and the liquid material automatically flows back to the barrel.

Application scenarios:
It is widely used in various processes of electronic product manufacturing, such as SMT patches, circuit assembly, etc.
Used for dispensing and coating precision electronic components and PCB boards, such as thermal conductive glue, sealant, etc.
It can also be used in production processes that require precise dispensing in food, medical and other industries.

Specification
