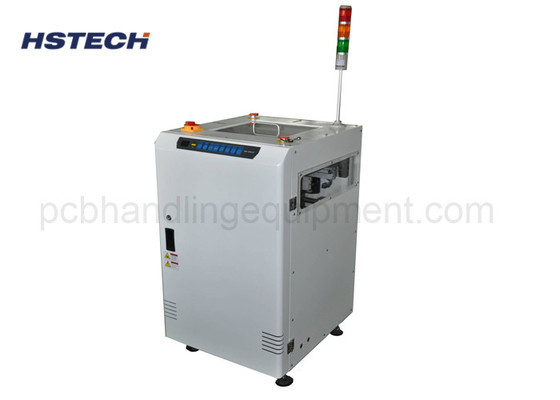

Enclosed Design PCB Turn Conveyor PCB Handling Equipment With SMEMA Compatible

Enclosed Design PCB Turn Conveyor PCB Handling Equipment With SMEMA Compatible

Introduce

PCB Turn Conveyor is a device for automatically rotating and transporting printed circuit boards (PCBs).

Function:
Automatically receive and transmit PCBs to achieve continuous production.
According to process requirements, the PCB is rotated accurately 180 degrees.
Cooperate with subsequent process equipment to achieve efficient transfer of PCBs.
Programmable control, flexible to adapt to PCBs of different sizes and shapes.

Main feature:
Use stable and reliable transmission mechanisms, such as belts or rollers.
Built-in high-precision rotation mechanism can accurately control the rotation angle.
The transmission speed is adjustable and synchronized with the rhythm of the process flow.
The equipment has a compact structure, small footprint, and is easy to integrate into the production line.
Equipped with safety protection devices, such as light barriers, emergency stops, etc.
PLC control system can be programmed to realize automatic operation.

Main component:
Transmission mechanism: such as belts or rollers, used to carry and move PCBs.
Rotating mechanism: Utilizes driving components such as motors or cylinders to perform 180-degree flips.
Sensor: detects PCB position information to ensure accurate rotation.
PLC control system: programming to realize automatic control and data monitoring.
Safety protection devices: such as light grids, emergency stop switches, etc.

Application scenarios:
SMT production line: PCB flipping between reflow soldering, AOI inspection and other processes.
Drilling process: Turn the PCB 180 degrees before and after drilling.
Tin spraying production line: The PCB is turned over before and after tin spraying.
Inspection test: Flip the PCB before and after the test equipment.

Features

1, Enclosed design with built-in torque limiter ensure high level

of safety.

2, Top safe cover can be opened for each access to hardware during

Maintenance.

3, Use friendly control button.

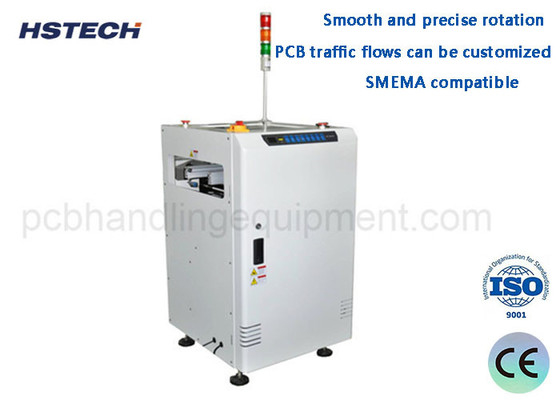

4, Smooth and precise rotation.

5, Minimize the transfer gap between conveyors.

6, PCB traffic flows can be customized.

7, Smooth and parallel width adjustment(lead screw).

8,SMEMA compatible.

Specification
