Guillotine Type PCB Separator Pneumatic Power PCB Separator With 2 Linear Guillotine Type Blade

High Quality Guillotine Type PCB Separator Pneumatic Power PCB Separator With 2 Linear Guillotine Type Blade

Introduce

This machine is pneumatic powered, work with 2 linear guillotine type blade, ultra low force stress, smooth and flat cutting, without glitch.

The linear knife type depaneling machines were designed to depanel prescored panelboards carefully, without bending or tension stress.
Even sensitive SMD-components like ceramic capacitors will not be damaged by the depaneling process.

It suitable for all kinds of pcb board,LED aluminum board,COB board, cooper board,etc

Function:
Cutting and separating the segmentation line reserved by the PCB can be accurately.
Support PCB boards of various sizes and shapes for separation operations.
It has fully automated functions such as automatic feeding, positioning, cutting, and materials.
During the cutting process, the edge of PCB can be kept intact to avoid damaging components.
Can cooperate with other equipment in the production line to achieve continuous automation.

Main feature:
The cutting force driven by an electric push rod or hydraulic pressure is large and stable.
Equipped with a high -precision optical positioning system to ensure that the cutting line is accurate.
There is an automatic feeding and dispenser to reduce the burden of manual operation.
There are multiple cutting modes, such as a single and multiple PCB separation at the same time.
The device structure is compact, the area is small, and it is easy to integrate to the production line.
With safety protection devices, such as emergency stops, grating, etc.

Main component:
Blade mechanism: Including blade, driving motor/hydraulic system.
Optical positioning system: uses cameras, image processing algorithms, etc.
Entry and exit institutions: Automated equipment such as conveyor belts, robots.
Program control system: PLC or embedded controller to achieve fully automation.
Safety protection device: such as emergency stop switch, grating sensor, etc.

Application scenario:
SMT production line: PCB is divided into PCB after returning welding.
Drilling/tin -plated line: It plays a role in the PCB split process.
Test link: separate the test completed PCB.
Small batch/sample production: fast and orderly division of a small amount of PCB.

Features

1, Guillotine type separating,low force stress500-600uE,high quality cutting.
2, Suitable for all kinds of material board,also can cutting high hardness,aluminum,and cooper board.

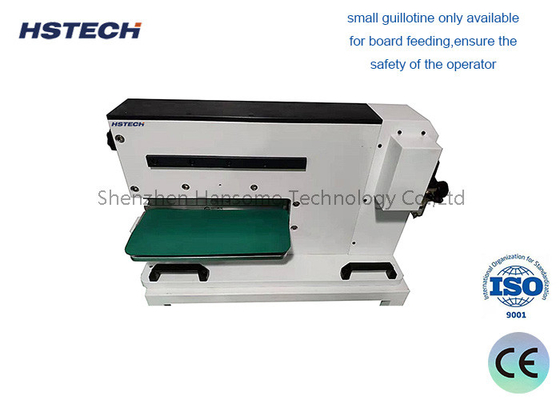

3, Security: small guillotine only available for board feeding,ensure the safety of the operator.
4, Very easy to learn and operating.
5, Durable, using import high quality steel made cutting tool.
