Blade Moving PCB Separators is a device for cutting and separating printing circuit boards (PCB). It uses a division of mobile blade.

working principle:
The device uses one or more mobile blade to cut on the PCB surface along the scheduled segmentation line.
The blade can move horizontally or vertically, and accurately cuts along the segmentation line on the PCB board.
The cutting process uses mechanical drive, such as pneumatic or electric push rods, which can provide sufficient cutting power.

Main feature:
The cutting accuracy is high, and the segmentation line marked on the PCB can be accurately cut.
Suitable for PCB boards of various sizes and shapes, which can be divided into single or multiple PCBs.
It can be used in conjunction with automated equipment such as conveyor belts to achieve continuous segmentation operations.
During the cutting process, it will not cause damage to the PCB surface and components.
The equipment structure is compact, flexible in installation, and easy to integrate to the production line.
With safety protection devices, such as grating sensors, emergency stop switches, etc.

Main component:
Mobile blade mechanism: Including blades, driving motors/cylinders, etc.
Positioning/guide system: Use optical sensors to achieve PCB positioning and guidance.
Entry and exit institutions: Automated equipment such as conveyor belts, robots.
Program control system: PLC or embedded controller to achieve fully automated operations.
Safety protection device: such as grating sensor, emergency stop switch, etc.

Application scenario:
SMT production line: PCB is divided into PCB after the return welding.
Drilling/tin -plated line: It plays a role in the PCB split process.
Test link: separate the test completed PCB.
Small batch/sample production: fast and orderly division of a small amount of PCB.

Features

1, This machine can use for cutting all kinds of boards with v-slot.

2, Durable blade design, balde can be shaped at least twice.

3, Circular blade height can be adjusted to fit the different kinds of PCB with different height components.

4, Blade moving operation,relative low force stress,single motor control the balde, easy and conovenient operation.

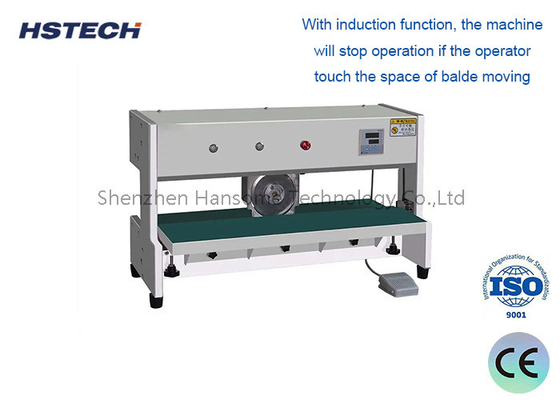

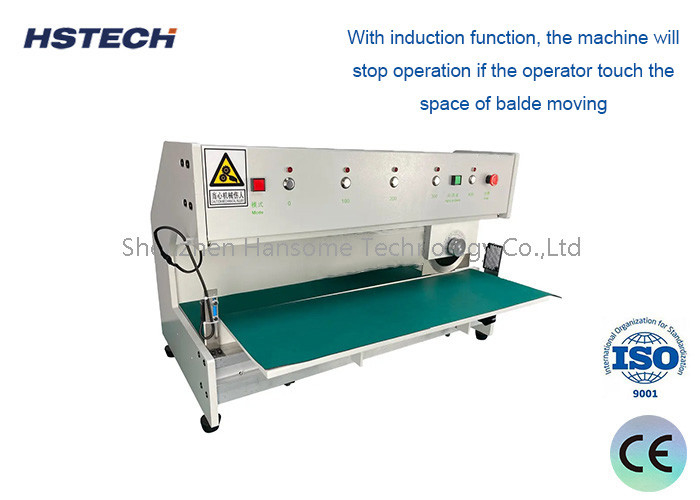

5, With induction function, the machine will stop operation if the operator touch the space of balde moving.

6, Security, with double protective device,no need worry about the security production problem.

7, Durable, using high quality good material blade.
