High Precision Semi-Auto 1.2M Screen Printer Solder Paste Printing Machine With 1.2meter LED Tube

High Precision Semi-Auto 1.2M Screen Printer Solder Paste Printing Machine With 1.2meter LED Tube

Introduction

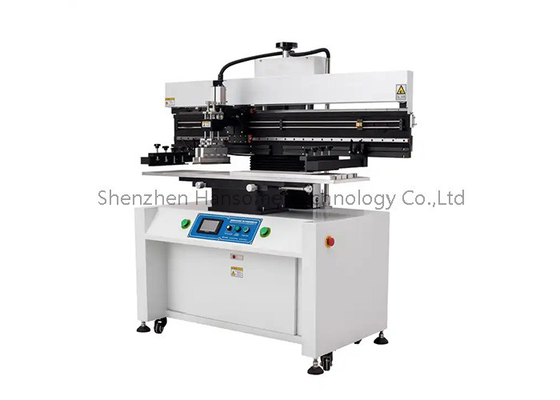

This unit solder paste printing machine is used for printing the 1.2meter LED tube PCB, it's semi-automatic machine, manul loading, automatic printing, it's used before the pick and place machine.

Semi-automatic printing process
The machine adopts a semi-automatic printing process, and the operator only needs to complete some steps manually, which greatly improves work efficiency.
The printing process is controlled by a foot switch, and the printing time and pressure can be accurately controlled.

Precise printing control
The machine is equipped with a digital display printing parameter setting system, which can pre-set parameters such as printing time and pressure.
The independent printing pressure adjustment mechanism can meet the needs of different substrate thicknesses and solder paste viscosities.

Humanized operation design
The equipment is equipped with a humanized touch screen control panel, which is convenient for operators to set and monitor printing parameters.
The removable carbon steel printing plate is easy to clean and maintain.

Efficient printing effect
The precise printing mechanism can achieve accurate transfer and uniform coating of solder paste.
The solder paste residue rate is low, reducing waste and improving production efficiency.

Flexible scope of application
Applicable to PCB substrates of various sizes, with a printing width of up to 370mm.
Optional dual print heads can be used to achieve parallel printing, greatly improving production efficiency.

Specification

Features

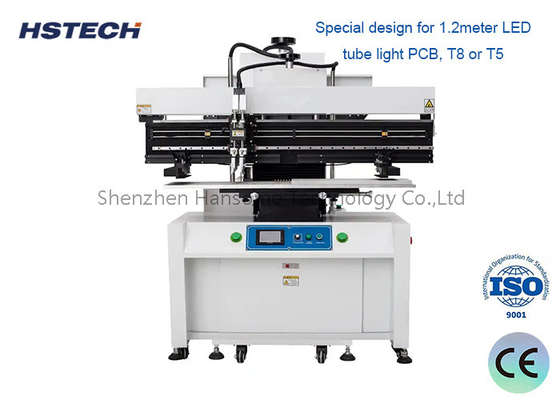

1, Special design for 1.2meter LED tube, T8 or T5.

2, Touch screen control panel, easy operation and stable.

3, Using Delta smooth drving frequency inventor to ensure more stable scraper speed.

4, Flexible double-blade suspended squeegee, the sueegee can be adjusted up and down to the right position.

5, The scraper printing table also can be adjusted, froth or back.

6, Using SMC Cylinder, position seal adopt shaped two-way sealing structure, good performance.

7, High precision printing and repeating accuracy.

8, Programmable motor controls separation speed and distance among squeegee, stencil and substrate, to realize multi-method separation.

9, The machine also support glue printing, improve efficiency and save cost.
